How to Inspect CNC Parts for Beginners

A CNC inspection is the process of verifying that a machined part matches the approved drawing, model, and quality requirements. It commonly includes checking dimensions, tolerances, hole locations, surface condition, threads, and critical features with appropriate measuring tools. Inspection may occur at first piece, during production, and after completion. Documented results provide evidence that the part was checked and help identify process variation before it produces additional nonconforming parts.

A CNC machining inspection report is a record of the measurements and observations collected for a manufactured part. It typically identifies the job, part number, revision, inspected features, specified tolerances, actual results, measuring equipment, inspector, and date. Depending on the quality program, it may support first-article inspection, in-process checks, final inspection, or customer documentation. Digital reports make records easier to retrieve, review, and connect to production data.

Beginners generally start with calibrated measuring tools matched to the feature being checked: calipers for external and internal dimensions, micrometers for tighter outside diameters, height gauges for measured heights, thread gauges for threads, and pin gauges for holes. A surface plate and indicators can help evaluate flatness or runout. Always use the drawing’s tolerance and the shop’s approved measurement method rather than choosing a tool based only on convenience.

Read the nominal dimension first, then identify the permitted variation shown beside it. For example, 1.000 ± 0.005 means an acceptable measurement falls from 0.995 to 1.005. Limit dimensions state the upper and lower acceptable values directly. Geometric dimensioning and tolerancing symbols may control form, orientation, or position, often using datum references. When a symbol or note is unclear, pause and consult the approved work instruction or quality team.

Inspection timing is defined by the job’s drawing, control plan, customer requirements, and internal procedures. Common checkpoints include first-piece inspection after setup, periodic in-process checks during production, inspections after tool changes or adjustments, and final inspection before release. More frequent checks may be required for critical tolerances, new programs, unstable processes, or regulated work. Recording results at each required interval creates a reliable quality trail and supports earlier corrective action.

Stop and follow the shop’s nonconformance procedure before continuing production. Confirm the measurement using the approved tool and method, verify the gauge is suitable and calibrated, and review the drawing revision and inspection instructions. Clearly identify or segregate affected parts so they are not mixed with acceptable material. Notify the appropriate supervisor, programmer, or quality representative, then document the result and any disposition or corrective action taken.

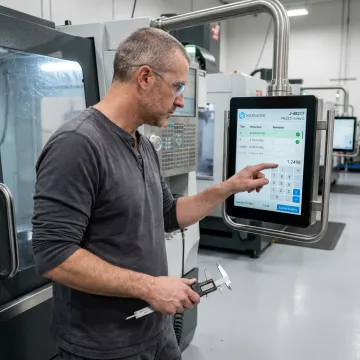

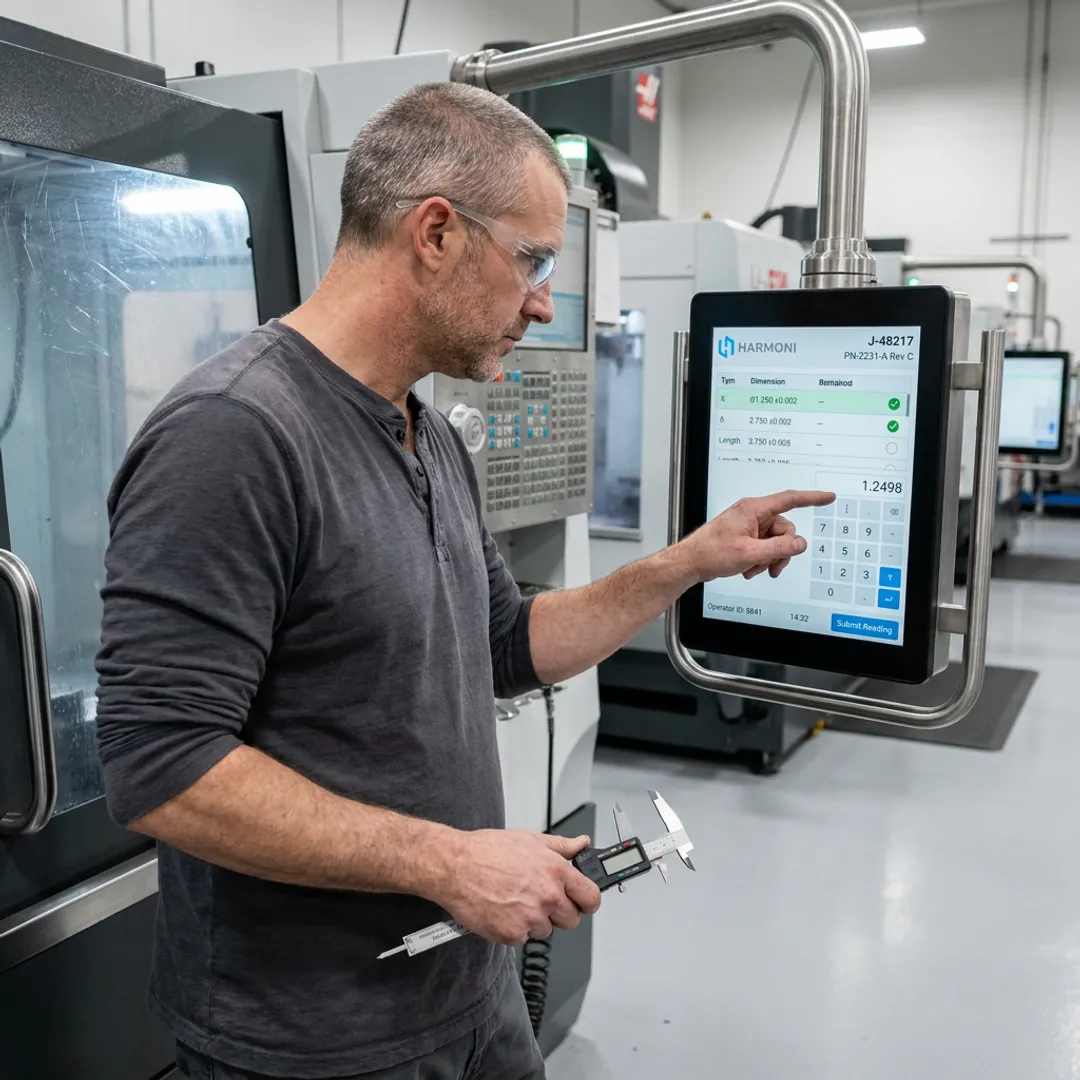

Digital checksheets guide operators through required measurements and capture results directly at the machine, reducing missed checks and hard-to-read paper records. They can associate inspection data with a specific job and part revision, creating an auditable quality record. Harmoni also surfaces real-time quality trends in SPC-style control charts, helping teams recognize variation sooner. This gives supervisors and quality personnel clearer information for investigation, documentation, and process improvement.

Use the current approved drawing and work instruction, confirm the part and revision before measuring, and select the specified calibrated gauge. Keep measuring surfaces clean, use consistent technique, and record actual results immediately rather than relying on memory. Check the required sampling frequency and ask for clarification when a tolerance, datum, or measurement method is uncertain. Digital work instructions and checksheets can reinforce these steps at the workcenter.
