Introduction
Unplanned equipment failures and over-maintenance both drain manufacturing budgets — just in different ways. One hits you without warning; the other quietly wastes labor and parts on equipment that didn't need attention yet.
According to Siemens' 2024 analysis, unplanned downtime costs Fortune Global 500 industrial companies $1.4 trillion annually — roughly 11% of revenue. For a large automotive plant, that figure reaches $2.3 million per hour.
Condition-based monitoring (CBM) is a maintenance strategy that replaces both reactive firefighting and rigid calendar schedules with something more precise: maintenance triggered by real-time signals from equipment. When a machine tells you something is wrong — through vibration patterns, temperature shifts, or pressure changes — you act. When the signal comes, you act.
This article covers how CBM works, the key monitoring techniques involved, the measurable benefits it delivers, and how it fits alongside preventive and predictive maintenance strategies.
Key Takeaways:
- CBM triggers maintenance based on actual equipment condition — responding to real signals, not rigid calendar dates
- Sensors, analytics software, and alert thresholds make up the core CBM technology stack
- Studies document 18–30% maintenance cost reductions at manufacturers using analytics-based CBM
- Vibration, thermal, oil, and ultrasonic monitoring each target different failure modes
- CBM is the practical foundation for more advanced predictive maintenance programs
How Condition-Based Monitoring Works
CBM's core mechanism is straightforward. Sensors installed on equipment continuously track parameters known to precede failure — vibration, temperature, pressure, current draw — and software flags deviations before they become breakdowns.

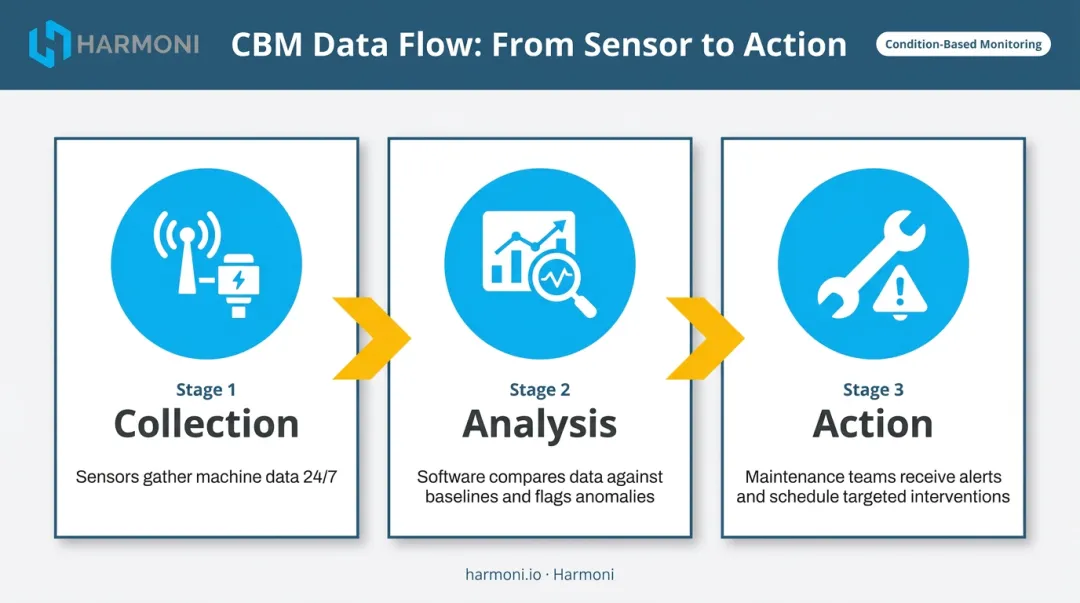

The Three-Stage Data Flow
- Collection — Sensors gather machine data 24/7, transmitting readings in real time to a central analytics platform
- Analysis — Software compares incoming data against established baselines, identifying trends and flagging anomalies that exceed defined thresholds
- Action — Maintenance teams receive targeted alerts and schedule interventions during planned windows, before failure occurs
Baselines and Threshold Configuration
Before CBM can protect anything, teams must establish what "normal" looks like for each asset — typically using historical operating data and OEM specifications. Alert thresholds are then configured around those baselines.
Threshold calibration matters more than most teams initially expect. McKinsey documented a case where a 10% false-positive rate at an industrial equipment manufacturer generated 1,000 unnecessary service cases annually, increased shutdown time by 10%, and erased an expected $1 million in annual savings. Improperly set thresholds erode ROI fast — and the damage compounds across every false alarm.
From Alert to Work Order
When a threshold is breached, a well-integrated CBM system creates a maintenance ticket automatically and routes it to the appropriate technician. Consider a practical example: a gearbox temperature sensor reads 15°C above its normal operating baseline. The system flags the deviation, creates an inspection ticket in the CMMS, and routes it to the mechanical team — all before the gearbox fails.
Edge vs. Cloud Architecture
| Architecture | Strengths | Best For |
|---|---|---|
| Edge computing | Low latency, local control, resilience if connectivity drops | Time-sensitive alerts on critical assets |
| Cloud platforms | Scalability, multi-site aggregation, long-term trend analysis | Fleet-wide benchmarking and historical analytics |
Most mature CBM programs use both: edge devices for immediate alerting, cloud platforms for broader pattern recognition across facilities.

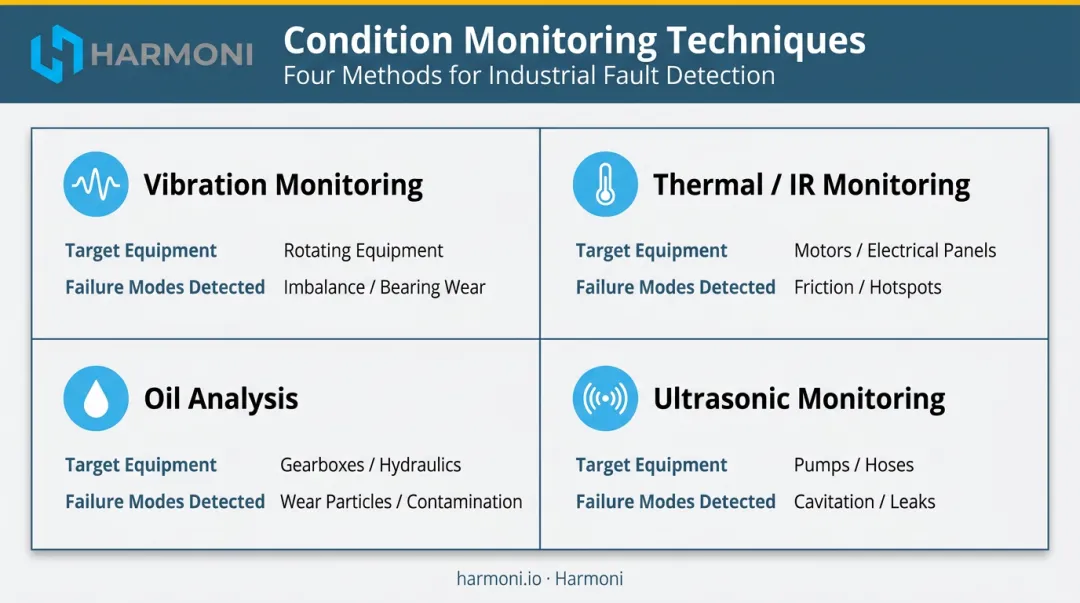

Key Techniques Used in Condition Monitoring
No single technique catches every failure mode. The right choice depends on the asset type, the failure mode being targeted, and the operating environment. Strong programs layer multiple techniques — each one targeting failure modes the others miss.
Vibration Monitoring
Vibration monitoring is the most widely deployed CBM technique, particularly for rotating equipment — motors, pumps, compressors, and gearboxes. Sensors detect subtle changes in vibration frequency or amplitude that indicate developing faults: imbalance, misalignment, bearing wear, or loose components.
The value is in early detection. Vibration anomalies often appear weeks or months before a visible failure, giving maintenance teams time to plan a scheduled intervention rather than scramble during an emergency. ISO 20816-3 establishes measurement standards for coupled industrial machines above 15 kW operating across a wide speed range.
Temperature and Thermographic Monitoring
Two related approaches serve different inspection needs:
- Thermal sensors provide continuous temperature readings at fixed points on motors, bearings, and hydraulic components — useful for ongoing trend monitoring
- Infrared thermography (IR cameras) capture heat emission across surfaces, making them particularly effective for identifying friction, electrical resistance buildup, and hotspots in electrical panels and switchgear
IR thermography doesn't require contact with the equipment, which makes it practical for inspecting energized electrical systems safely. NFPA 70B covers IR inspection requirements for industrial electrical equipment.
Oil Analysis and Ultrasonic Monitoring
Oil analysis examines lubricant samples for wear particles, contamination (water, coolant ingress), viscosity changes, and chemical breakdown. It's especially effective for gearboxes, engines, and hydraulic systems — revealing internal wear before any external symptoms appear. ISO 14830-1 provides guidance for tribology-based condition monitoring of lubricants.
Ultrasonic monitoring uses high-frequency sound sensors to detect phenomena beyond human hearing:
- Pressure leaks in hoses and compressed air systems
- Cavitation in pumps
- Inadequate lubrication in bearings (a dry bearing produces a distinctive ultrasonic signature)
Together, oil analysis and ultrasonic monitoring catch internal wear and leak-related failures that vibration signatures rarely surface until the damage is already advanced.
Electrical and Pressure Monitoring
Two more techniques address failure modes that thermal and vibration analysis tend to miss:
- Motor circuit analysis — detects electrical imbalances and insulation degradation in electric motors before winding failures occur
- Pressure monitoring — tracks fluid and air pressure in real time across compressors and pneumatic systems, flagging developing leaks or flow restrictions
Benefits of Condition-Based Maintenance for Manufacturers
Reduced Unplanned Downtime
Because CBM detects degradation early, maintenance can be scheduled during planned windows rather than responding to sudden line stoppages. The financial case is clear: at $2.3 million per hour in automotive manufacturing, even preventing a single unplanned outage per quarter changes the P&L.
Lower Maintenance Costs
McKinsey's documented manufacturing cases show measurable cost reductions through analytics-based maintenance strategies built on condition data:
- 18–25% maintenance cost reduction at a medical device manufacturer
- 30% reduction in combined labor, downtime, and parts costs at a technology manufacturer
Fixed-schedule maintenance generates its own waste: technicians replace parts that still have usable life, and equipment gets serviced whether it needs it or not. CBM eliminates that overhead by making maintenance demand-driven.
Extended Asset Lifespan
Catching a developing bearing fault early doesn't just prevent a bearing failure. It also prevents secondary damage to shafts, housings, seals, and adjacent components. Addressing faults while they're small keeps repair costs proportional — and defers capital expenditure on premature replacements.
Smarter MRO Inventory Management
CBM gives procurement teams advance notice: when the system flags a bearing trending toward failure, maintenance knows what part to order and roughly when it will be needed. This precision reduces two inventory problems simultaneously:
- Eliminates excess "just in case" stock by tying orders to actual failure timelines
- Avoids emergency procurement premiums and expedited shipping costs
Improved Safety and Compliance
For manufacturers in aerospace, defense, and healthcare — environments where equipment failures can have consequences far beyond production delays — CBM's early warning capability reduces catastrophic failure risk.
These sectors operate under frameworks including AS9100, ISO 13485, IATF 16949, CMMC, and ITAR, where equipment reliability intersects with quality management and regulatory compliance. Detecting anomalies before they escalate supports worker safety and audit-ready operational records.
CBM vs. Preventive vs. Predictive Maintenance

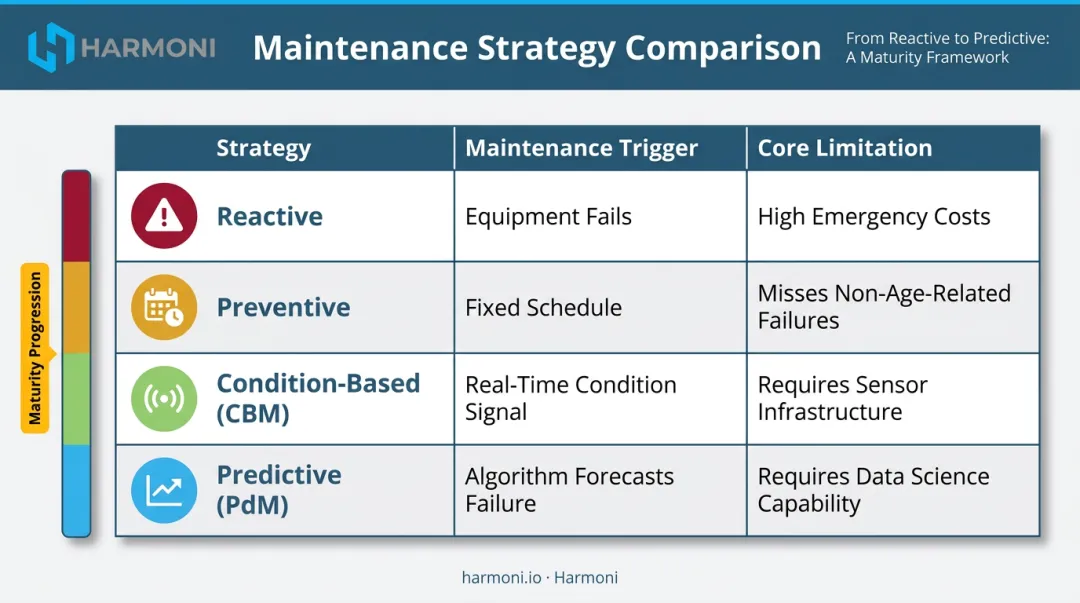

Three Approaches Compared
| Strategy | Maintenance Trigger | Core Limitation |
|---|---|---|
| Reactive | Equipment fails | High emergency repair costs; uncontrolled downtime |
| Preventive | Fixed time or usage schedule | Age/use doesn't predict every failure mode |
| Condition-Based (CBM) | Real-time condition signal crosses threshold | Requires sensor infrastructure and threshold calibration |
| Predictive (PdM) | Algorithm forecasts time-to-failure | Requires failure history, model coverage, and data science capability |
The DOE's legacy benchmark data places reactive maintenance at roughly $18/horsepower-year versus $9/hp-year for predictive strategies — though these figures date to 2010 and should be treated as directional, not current.
CBM and Predictive Maintenance: Complementary, Not Competing
CBM triggers action when a condition threshold is crossed, making it reactive to a measured signal. Predictive maintenance (PdM) goes further, using historical data and machine learning to forecast when failure will occur, giving teams a time-to-failure estimate rather than just a current-condition flag.
In practice, CBM is the data foundation that PdM builds on — you can't forecast failure accurately without a reliable stream of condition data. That foundation-building takes time: a 2022 Plant Services survey found 63% of maintenance practitioners leaned toward CBM over advanced PdM, confirming that most facilities are still establishing condition-monitoring programs before attempting predictive modeling.
The Practical Case for Starting with CBM
CBM occupies useful middle ground. It's more responsive than calendar-based preventive maintenance and far easier to implement than full predictive analytics. Manufacturers don't need AI infrastructure or large data science teams to run a CBM program — they need sensors, baselines, thresholds, and a process for acting on alerts. For most shops, that's a realistic starting point — one that delivers measurable improvement before any machine learning enters the picture.
Implementation Challenges and Considerations
Upfront Investment and Infrastructure
CBM isn't free to deploy. The cost stack includes:
- Sensor hardware (per asset)
- Network connectivity and data transmission
- Analytics software licensing
- Integration with existing CMMS or ERP systems
- Staff time for baseline configuration and threshold calibration
- Ongoing support and calibration refinement
Organizations should plan for the full cost picture, not just hardware. ROI comes through reduced downtime and eliminated unnecessary maintenance runs — but only when deployment is done properly and thresholds are managed over time, not set once and forgotten.
Alert Fatigue and Data Overload
Continuous monitoring generates continuous data. Without proper filtering, teams drown in noise. McKinsey documented exactly this failure mode: poor threshold calibration led to 1,000 unnecessary service calls and wiped out $1M in projected savings.
Practical countermeasures:
- Start CBM on your highest-criticality assets only
- Refine thresholds iteratively using actual operating data
- Use dashboards that surface actionable alerts, not raw sensor feeds
- Set escalation tiers (warning vs. critical) to prioritize response
Change Management and Workforce Readiness
Shifting from schedule-driven to condition-driven workflows requires more than new software. Technicians need to understand what the data means, how to interpret alerts, and why a sensor reading warrants an inspection. A Plant Services survey found 62.3% of practitioners still used paper for data collection — a reminder of how far many facilities are from digital-native maintenance workflows.
Cultural change of that magnitude requires leadership buy-in, role-specific training, and patience.
How CBM Data Connects to Real-Time Shop Floor Operations
A CBM alert is only as valuable as the response it enables. The gap between "sensor flagged an anomaly" and "maintenance team addresses the issue without disrupting production" is where most programs lose value.
That gap exists because machine health data rarely lives in the same operational context as production schedules, operator assignments, and job priorities. An isolated alert tells you something is wrong with a machine — it doesn't tell you which job is running on it, who's at that workcenter, or what the downstream schedule impact of a two-hour maintenance window would be.

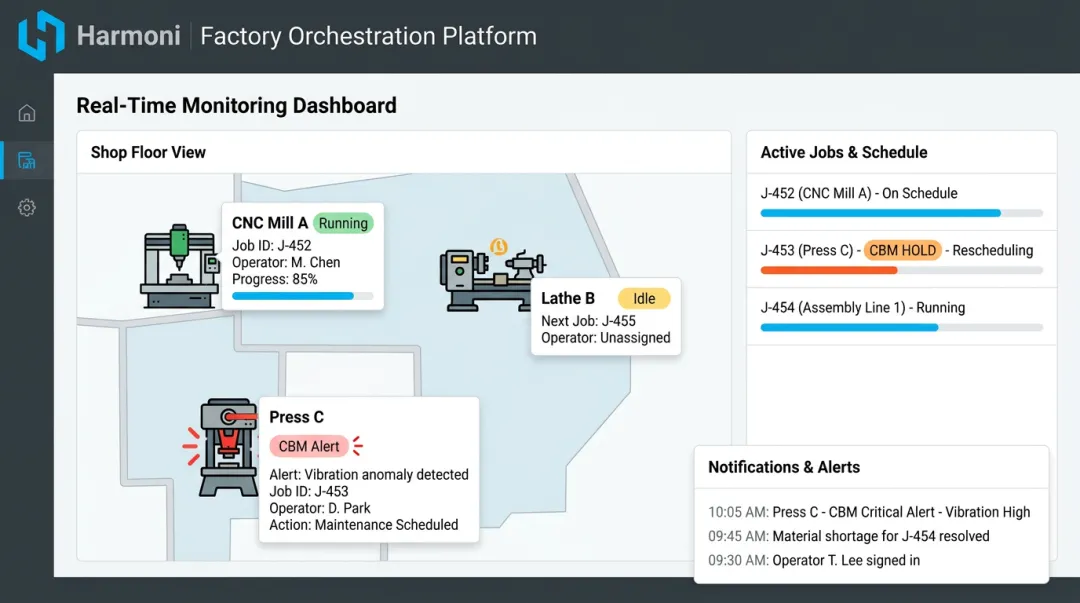

Harmoni's factory orchestration platform addresses this by bringing machine data together with operator activity and ERP workflows in a single, real-time view. When an anomaly is detected, teams coordinate the operational response immediately — not after a chain of disconnected notifications. That's possible because the platform connects the right tools in one place:
- Visual Factory indicator lights signal machine status across the shop floor at a glance
- Real-time machine monitoring dashboards surface anomalies alongside active job and operator data
- Direct communication tools reach maintenance and engineering teams without leaving the platform
Combining sensor data with operational context turns an alert into a coordinated response. Teams can see which job is affected, route the right technician, and assess schedule impact before the intervention begins — not scrambling to reconstruct the situation afterward.
Frequently Asked Questions
What is a condition-based monitoring system?
A CBM system combines sensors, data transmission infrastructure, analytics software, and alerting mechanisms to enable continuous monitoring of equipment health. Maintenance actions are triggered by actual machine condition readings — not predetermined schedules or assumptions.
What is the difference between PdM and CBM?
CBM triggers maintenance when a sensor reading crosses a defined threshold (condition-driven). Predictive maintenance uses historical data and algorithms to forecast when failure will occur in the future (time-to-failure driven). CBM is typically a core component of any PdM strategy.
What types of equipment benefit most from condition-based monitoring?
Rotating equipment — motors, pumps, compressors, gearboxes — is the most common starting point. Electrical systems, hydraulic systems, and any high-criticality asset where unplanned failure causes significant production loss or safety risk also benefit significantly.
How does condition-based monitoring reduce maintenance costs?
CBM cuts costs by targeting the right work at the right time:
- Eliminates unnecessary preventive maintenance tasks
- Avoids costly emergency repairs from undetected failures
- Enables smarter spare parts purchasing based on actual condition signals
Can condition-based monitoring be done remotely?
Yes. IoT-connected sensors transmit data continuously to cloud or edge platforms accessible from anywhere. Maintenance teams can monitor asset health and receive real-time alerts without a technician physically present at the machine.
How do manufacturers decide which assets to monitor first?
Asset criticality drives prioritization. Start with equipment whose failure would cause the greatest production impact, safety risk, or repair cost — then expand CBM coverage systematically to lower-priority assets as the program matures.
