Rushed or skipped cleaning leads to chip buildup, coolant contamination, and premature tool wear. Inconsistent setup causes first-article failures, blown offsets, and changeovers that run long because nobody wrote down the exact sequence. Neither problem is about laziness. It's about missing documentation.
This guide covers how to write setup and cleaning work instructions that actually get followed, what they need to include, and the safety rules that are non-negotiable for both tasks.
Key Takeaways
- Setup and cleaning errors cause scrap, downtime, and injury, not just inefficiency
- Every setup sheet should lock in tool sequence, offsets, and a first-piece checkpoint
- Safe cleaning depends on lockout confirmation, approved tools, and a visual "acceptable" photo
- Digital delivery at the workstation beats paper and laminates for shift-to-shift consistency
What Are Work Instructions for Machine Shop Setup and Cleaning?
Setup work instructions define the exact sequence an operator follows to change a machine over between jobs. They specify:
- Which tools load first
- How fixtures seat
- Which offsets get entered
- How the first piece gets verified before full production runs
Cleaning work instructions define the method, frequency, and acceptance standard for removing chips, coolant residue, and debris from a machine and its surrounding bay.
Neither is a general SOP. A departmental SOP might describe how quality holds are processed across the plant. A setup or cleaning work instruction is tied to one specific machine and one specific job, and it directly affects changeover time and uptime, not just process consistency.

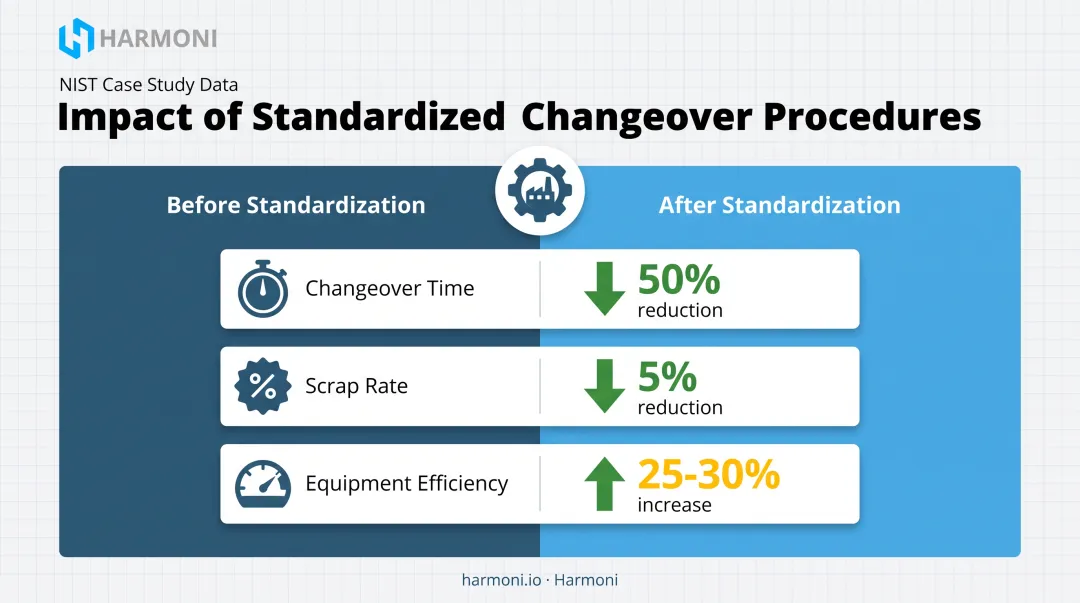

The connection between inconsistent changeover work and lost output is well documented outside the machining world too. A NIST Manufacturing Extension Partnership case study on a roll-conversion manufacturer found that standardizing changeover work delivered 50% lower changeover time and 5% lower scrap, alongside a 25–30% jump in equipment efficiency.
The lesson translates directly to CNC work: when the sequence is written down and followed the same way every time, both speed and quality improve together.

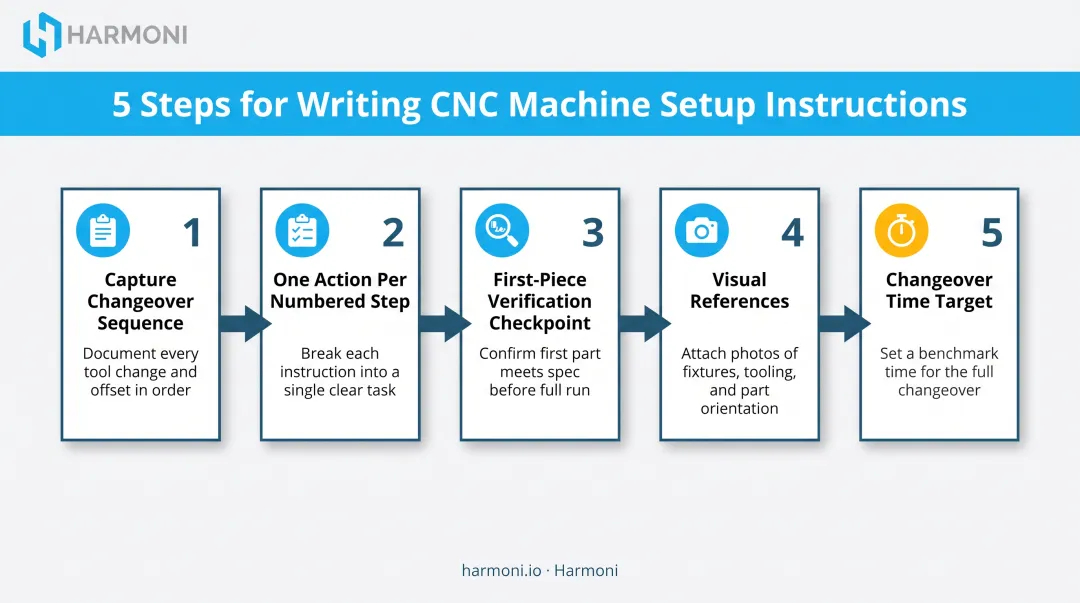

How to Write Setup Work Instructions for a Machine Shop
Setup instructions should be built by watching your most experienced operator run an actual changeover, stopwatch in hand. Writing them from a print or from memory in an office almost always produces a document that looks complete but skips steps nobody remembers to mention out loud.
Step 1: Capture the Full Changeover Sequence
Document every tool, fixture, offset, and torque value the operator applies, in the exact order they apply it. If the operator zeroes the Z-axis before seating the fixture, write it that way, not in the "logical" order you'd assume from the print.
Step 2: Write One Action Per Numbered Step
Each step should contain a single action verb: load, zero, torque, verify. This makes a skipped step obvious during a first-article check, instead of buried inside a paragraph. Compare:
- Weak: "Install the fixture and set the offsets, then check the tool numbers."
- Strong:
- Install the fixture and verify seating.
- Set work offsets per the setup sheet.
- Confirm tool numbers match the program.
Step 3: Build in a First-Piece Verification Checkpoint
End the setup sequence with a clear inspection step and defined acceptance criteria. Don't let the operator move to full production until that first piece has been measured against spec and signed off.
Step 4: Add Visual References for Fixture and Tool Orientation
Text alone can't always resolve ambiguity. An annotated photo of correct fixture seating, tool numbers, and offset entry screens closes gaps that a written description leaves open to interpretation.
Step 5: Set a Changeover Time Target
Give operators a benchmark changeover time so setup speed gets measured against a known standard rather than guessed at shift to shift.
A time target only helps if operators can reach the right instruction fast. Too often, shift time disappears while someone digs through binders or shared drives—or runs an outdated printout.
Harmoni's digital work instruction platform uses long-range RFID to detect the job traveler as the operator approaches the workcenter, then surfaces the correct setup instruction and current revision on the terminal. No manual lookup, and no path to an old version.
How to Write Cleaning Work Instructions for a Machine Shop
Cleaning instructions are frequently the most neglected work instruction category in a shop, even though they directly affect both part quality and operator safety. Skipped or rushed cleaning lets chip fines accumulate in coolant, which creates a nesting ground for bacteria and shortens fluid life.
Step 1: Define the Type and Frequency of Cleaning
Separate cleaning into distinct categories, each with a named owner:
- End-of-shift cleaning — daily chip and debris removal, assigned to the outgoing operator
- Post-changeover cleaning — clearing residue before the next job starts, assigned to the setup operator
- Periodic deep cleaning — coolant system and tank cleaning, assigned on a fixed schedule
Step 2: Require the Machine to Be Off Before Cleaning Begins
State explicitly that machines must be powered down or locked out before any cleaning step starts. This isn't optional guidance.
Under OSHA's lockout/tagout standard, 29 CFR 1910.147, covered "servicing" includes cleaning, adjusting, and unjamming whenever an employee could be exposed to hazardous energy. Don't assume a "quick wipe-down" is exempt from lockout just because it's fast.
Step 3: Specify Approved Tools and Prohibit Unsafe Shortcuts
List the brushes, vacuums, or approved cleaners operators should use for chip and debris removal. Then explicitly prohibit the shortcuts that cause injuries:
- No clearing chips by hand
- No compressed air used near the body or clothing
- No air pressure above the regulated limit for cleaning purposes
That limit is federal law. OSHA's 1910.242(b) standard requires compressed air used for cleaning be reduced to less than 30 psi, with chip guarding and PPE in place.
Step 4: Set a Visual "Clean" Standard
Include a reference photo of an acceptable machine bay—floors clear of chips, ways wiped, chip pans emptied, and coolant free of floating debris. "Clean" means something different to every operator until you show them exactly what it looks like.
Key Components Every Setup and Cleaning Instruction Must Include
A complete instruction, whether for setup or cleaning, needs four elements every time:
- Title and objective — name the specific machine, job, or task (for example, "CNC Lathe Setup — Part Family B" instead of a generic "Setup Instructions")
- Materials, tools, and PPE — list everything upfront so the operator never has to stop mid-task to search for something
- Numbered steps with visuals and acceptance criteria — one action per step, with a photo or diagram wherever a text description could be read more than one way
- Document control block — revision number, effective date, author, and approver, required for audit readiness under ISO 9001 and AS9100D
That fourth item is where most paper-based systems fail. A revision gets updated, but the laminated sheet at the machine doesn't get swapped out.
Harmoni's factory orchestration platform enforces that document control block automatically. Engineering changes go through an approval workflow, and only the approved revision reaches the workcenter. The operator never sees a superseded copy, because there's no manual step where an old printout could get left behind.
Safety Rules and Common Mistakes to Avoid
Some setup and cleaning rules aren't negotiable, no matter how far behind the shift is running:
- PPE required, even for quick tasks — a 30-second cleaning pass still needs eye protection and gloves
- Machines fully shut off before any cleaning or adjustment — no exceptions for "just a quick wipe"
- No compressed air aimed at the body or clothing — this applies even below the regulated pressure limit
- Chips cleared with tools, not bare hands — brushes and hooks exist for a reason
Beyond the safety basics, two mistakes show up again and again in shops that struggle with compliance:
- Writing instructions without operator input — office-built docs skip the steps operators actually use; observe the task before you write
- No scheduled review after a process change — new tooling, materials, or coolant should trigger a review before setup and cleaning steps go stale
Frequently Asked Questions
What are work instructions for manufacturing?
Work instructions are step-by-step documents that guide an operator through the materials, tools, and procedures needed to complete a specific task correctly and consistently. They differ from broad SOPs by focusing on one task at one workcenter.
What are the typical duties and responsibilities of a machine shop?
Machine shop teams read blueprints and specs, set up and run CNC or manual machines, perform in-process inspection, and handle routine cleaning and maintenance. Machinists also monitor feed rates and verify finished parts against tolerance.
What qualifications do you need to work in a machine shop?
Most shops require a high school diploma plus on-the-job training or an apprenticeship, along with blueprint reading and measurement tool proficiency. Shop-specific safety training, including lockout/tagout, is typically required before an operator runs equipment independently.
What are the do's and don'ts in a machine shop?
Do wear PPE, follow written setup and cleaning procedures, and report issues immediately. Don't ever clean or adjust a running machine, and don't skip first-piece checks even when a changeover is running behind schedule.
How often should machine shop cleaning instructions be updated?
Review cleaning instructions immediately after any material, tooling, or process change that affects contamination risk. Add a regular review schedule on top of that, with one named owner keeping the document current.
What's the difference between a setup work instruction and a cleaning checklist?
Setup instructions are sequential and preparatory, walking the operator through getting the machine ready to run. Cleaning checklists are typically task-based verification lists confirming a defined cleanliness standard has been met.
