That information gap is expensive. Downtime alone eats up 8.3% of planned production time and costs discrete manufacturers $245 billion a year, according to NIST's Annual Report on the U.S. Manufacturing Economy. Without visual cues at the point of work, problems surface hours or shifts later, not in the moment they happen. That delay shows up as scrap, missed ship dates, and inconsistent execution from one operator to the next.
This guide covers what visual management actually is, the tools shops use to close that gap, real examples from precision manufacturing, and how the practice has moved from static whiteboards to real-time digital displays.
Key Takeaways
- Visual management replaces verbal instructions and reports with signals anyone can read at a glance
- Five tools dominate shop floors: Andon lights, Kanban boards, KPI dashboards, floor signage, and daily boards
- Most manufacturers start with two frameworks: 5S and the 1-3-10 rule
- Real-time dashboards are replacing static boards by pulling machine, ERP, and operator data together
What Is Visual Management?
Visual management uses visual signals such as labels, signs, lights, and boards instead of written instructions or verbal communication. These signals show status, standards, and problems the instant they occur.
The Lean Enterprise Institute defines it as placing tools, parts, activities, and performance indicators in plain view so anyone can understand system status at a glance.
The concept traces back to Toyota's production system. Under jidoka, one of TPS's two core pillars, equipment stops itself when something goes wrong, and an Andon light alerts the team.
That single idea, making abnormalities visible immediately rather than discovering them later, became the foundation for nearly every visual control used in manufacturing today.
There's a cognitive reason this works. People recognize images and color-coded signals faster than they process blocks of text. That's why a red light stops someone in their tracks while a memo gets skimmed or ignored.
Visual controls generally fall into three buckets:
- Informative — identity markers, goals, compliance postings
- Instructional — SOPs, setup sheets, work instructions
- Result-oriented — live performance data, production status, quality trends
One more distinction matters here. An Andon light is a tool. A facility where every workstation, aisle, and board follows the same visual language is a system. Most shops have plenty of the former and very little of the latter.
Five Common Types of Visual Management Tools
Visual management shows up in dozens of formats, but five tool types account for most of what you'll find on a manufacturing floor.
Andon Systems
Andon lights use color to signal machine status: running, needs attention, or stopped. When a light changes, operators know instantly whether to keep working or call for help.

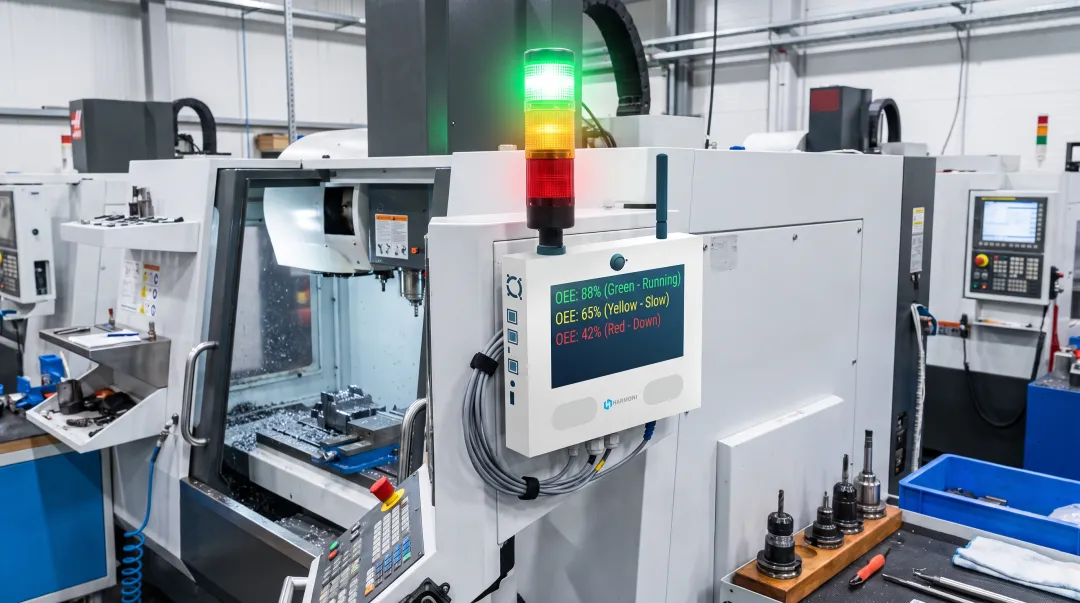

Traditional andon is binary—on or off. Harmoni's Visual Factory ties light color to live OEE data, not just a simple run signal:
- Green means the machine is running and hitting expected production rates
- Yellow flags slipping performance from a stoppage or output below benchmark, before the loss grows
- Red signals poor productivity even if the spindle is turning—idle time earlier in the shift keeps it red until performance recovers
Kanban Boards
Kanban boards visualize workflow stages—typically to-do, in-progress, and done—to manage work-in-process and expose bottlenecks. LEI defines Kanban as a signaling device that authorizes production or withdrawal based on downstream demand.
Many shops still use magnets and whiteboards. Digital Kanban on wall-mounted screens is becoming standard mainly because it updates itself.
Performance & KPI Dashboards
Dashboards display production, quality, and downtime metrics in real time so teams react to deviations during the shift, not after it ends. Harmoni's dashboards track all three OEE components plus specific downtime reasons:
- Availability
- Performance against ERP-defined cycle times
- Quality
- Downtime causes such as changeover, breakdown, and material wait
That detail lets teams fix the actual cause instead of guessing.
Visual Signage & Floor Marking
Safety signage, wayfinding, machine labeling, and floor or pipe marking guide behavior without a single verbal instruction. OSHA requires marked, unobstructed aisles and assigns specific colors, red and yellow among them, to designated hazard categories. Good floor marking prevents forklift-pedestrian conflicts and keeps staging areas from becoming dumping grounds.
Daily Management & Information Boards
These boards support shift-change handoffs, stand-up meetings, and tracking of daily goals and action items. Harmoni handles this at the machine interface instead of a physical board. Operators and management communicate through voice, video, and messaging, while role-based dashboards surface performance gaps in real time—no waiting for the next huddle.
Visual Management Examples Across Manufacturing
Theory only gets you so far. Here's how these tools actually look on different floors.
CNC and Precision Machining
Common floor visuals include:
- Color-coded tool boards with shadow outlines that make a missing insert obvious at a glance
- Workcenter status lights that eliminate the walk-and-ask cycle for job assignments
One beryllium shop, MSI, used Harmoni to break down communication barriers and reduce errors across the floor. Shop floor data visibility became a direct revenue driver in an environment where consistency is non-negotiable.
Aerospace and Defense
Compliance-heavy environments need visuals that double as audit evidence. Traceability staples include:
- Work instruction boards
- Revision control indicators
- First-article inspection checkpoints
NIST's case study on Lynn Welding, an aerospace and defense supplier, shows the payoff. Mandatory visual and scheduling boards, paired with setup reduction, contributed to $900,000 in new or retained sales, $100,000 in cost savings, and four jobs created or retained.
Digital work instruction platforms push the same idea further. Harmoni links instructions to a specific part revision and alerts engineering by text and email whenever a program changes on the floor, requiring formal review before the new revision goes live. That workflow directly supports AS9100 document control expectations.
Warehouse and Automotive Material Flow
Floor markings define staging zones, limit quantities, and separate pedestrian and forklift traffic. Toyota itself visualizes allotted work time and job progress directly on the factory floor, keeping material movement predictable without a single verbal check-in.
Visual Management and the 1-3-10 Rule
Two frameworks show up more than any others when shops start building out visual systems.
5S and Visual Management
5S, meaning Sort, Set in Order, Shine, Standardize, and Sustain, relies almost entirely on visual cues to stay alive. Labeled storage locations, color-coded zones, and red/green audit checklists make it obvious the moment something's out of place.
Without those cues, 5S programs decay within months. Operators drift back to old habits because nothing visible holds them to the standard.
Common cues in the field:
- Colored labels marking replenishment points
- Fixed tool homes with foam cutouts showing what's missing
- Shadow boards for hand tools
- Green/red status tags from the last audit
The 1-3-10 Rule
This is a practical heuristic, not a formal Toyota or standards-body rule, but it's widely used because it works: in 1 second, know if you're winning or losing. In 3 seconds, know where. In 10 seconds, know what to do about it.
Applied to a performance board, a red/green status should be visible from across the room (1 second), and the specific workcenter should be labeled clearly (3 seconds).
A short action prompt—like "call supervisor" or "check tooling"—then tells someone exactly what to do next (10 seconds). If your board takes longer to read than that, it's too complicated.
From Static Boards to Real-Time Digital Visual Management
Whiteboards and paper Kanban cards have one fatal flaw: someone has to update them. That manual step creates a lag between an event happening and anyone actually seeing it, and lag is exactly what visual management is supposed to eliminate.
The shift underway now is toward dashboards that combine machine data, ERP workflows, and operator activity into a single live view, instead of siloed reports pulled together after the fact.

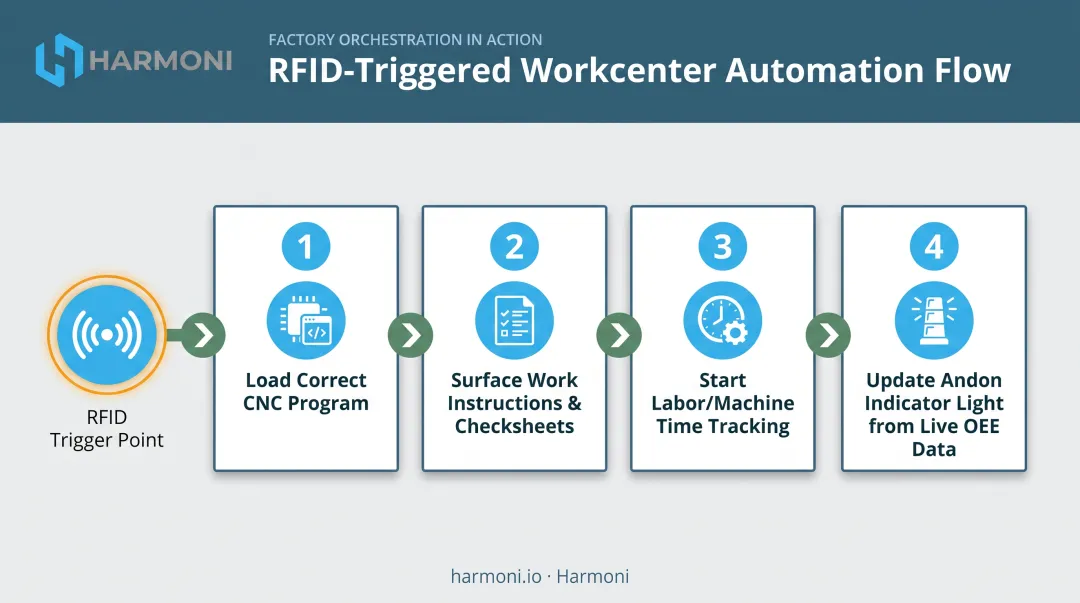

Harmoni's factory orchestration platform is built around that idea. It sits between ERP, machines, and operators, using long-range RFID to automatically detect which employee and which job just arrived at a workcenter. No badge swipe, no keyboard entry. The moment detection happens, the platform:
- Loads the correct CNC program for that exact part revision
- Surfaces the right work instructions, setup sheets, and quality checksheet prompts
- Starts tracking labor and machine time automatically for accurate job costing
- Updates the andon-style indicator light based on live OEE data, not a manual setting
This runs on three connected pillars:
- Automation captures events without waiting on manual updates
- Process control blocks wrong revisions before they turn into scrap
- Observability surfaces status while production is still running—not in next week's review
At WessDel, a beryllium machining shop, full installation took less than one week, and operators clocked in at their machines from day one. Over the following months, phased rollout of work instructions, automated program loading, and digital checksheets contributed to 17 productive hours gained per employee, per month.
For defense contractors handling Controlled Unclassified Information, Harmoni offers a separate Government Cloud environment aligned with CMMC and ITAR access controls, distinct from the standard public cloud deployment.
The platform also connects to existing Mazak, Haas, Fanuc, Heidenhain, Siemens, DMG MORI, Makino, and Fadal controls without new machines. Most facilities get live workcenter visibility in weeks—not the months a custom-built visual management program usually takes.
Frequently Asked Questions
What is meant by visual management?
Visual management is a system of visual signals—labels, lights, boards, and signage— used to communicate status, standards, and problems instantly, without relying on verbal reports or written memos.
What are the five types of visual management?
The five most common types are Andon systems, Kanban boards, performance and KPI dashboards, visual signage and floor marking, and daily management boards.
What is 5S visual management?
5S (Sort, Set in Order, Shine, Standardize, Sustain) uses labeled storage, color coding, and visual audit checklists to keep a workplace organized and make deviations from standard obvious at a glance.
What is the 1-3-10 rule in visual management?
It's a design heuristic: in 1 second, know if performance is good or bad; in 3 seconds, know where the issue is; in 10 seconds, know what action to take.
What are the main benefits of visual management?
Faster problem detection, better accountability, fewer errors from outdated instructions, and clearer team communication—especially versus verbal handoffs or after-shift reports.
How do I get started implementing visual management in my facility?
Define what must be visible at the point of use, put indicators on the floor—not in a back office—and review them often so they stay accurate. Many shops start with digital andon lights and real-time dashboards tied to machine and job status.
