This happens more often than shops like to admit. Standardized, documented work is what makes deviations visible before they become defects — and its absence is directly tied to inconsistent quality outcomes, according to Quality Magazine's analysis of standardized work practices.
Quality control work instructions are the fix: detailed, step-by-step documents that tell an operator exactly how to inspect, measure, and verify a specific task at a specific workstation. This article covers how they differ from SOPs, what elements they need, how to build and roll them out, and how digital, real-time delivery is changing how instructions reach the shop floor.
Key Takeaways
- Work instructions target one specific task; SOPs govern a broader process or department
- Strong instructions define scope, steps, tools, and acceptance criteria up front
- Operator involvement during drafting catches gaps before rollout, not after
- Paper-based instructions create version-control risk that digital delivery eliminates
- Digital, RFID-triggered instructions link to machine and ERP data so process issues get caught in real time
What Are Quality Control Work Instructions?
A quality control work instruction is a document that tells someone, in exact detail, how to complete one inspection or verification task: which gauge to use, where to measure, and what result counts as a pass. It's the most granular layer of documentation in a quality management system.
Where Work Instructions Fit in Your QMS
Traditionally, QMS documentation is described as a hierarchy: quality policy, quality manual, procedures, work instructions, then records.
ISO 9001:2015 doesn't actually mandate this exact structure. Accredited registrar NQA notes that the current standard gives organizations flexibility in how they document their QMS, based on context and customer requirements. Still, the practical distinction between the three levels holds up:
- Process — what needs to happen and why (e.g., "incoming inspection ensures raw material conforms to spec")
- Procedure — how that process gets executed at a department level
- Work instruction — precisely how to carry out one repeatable task within that procedure

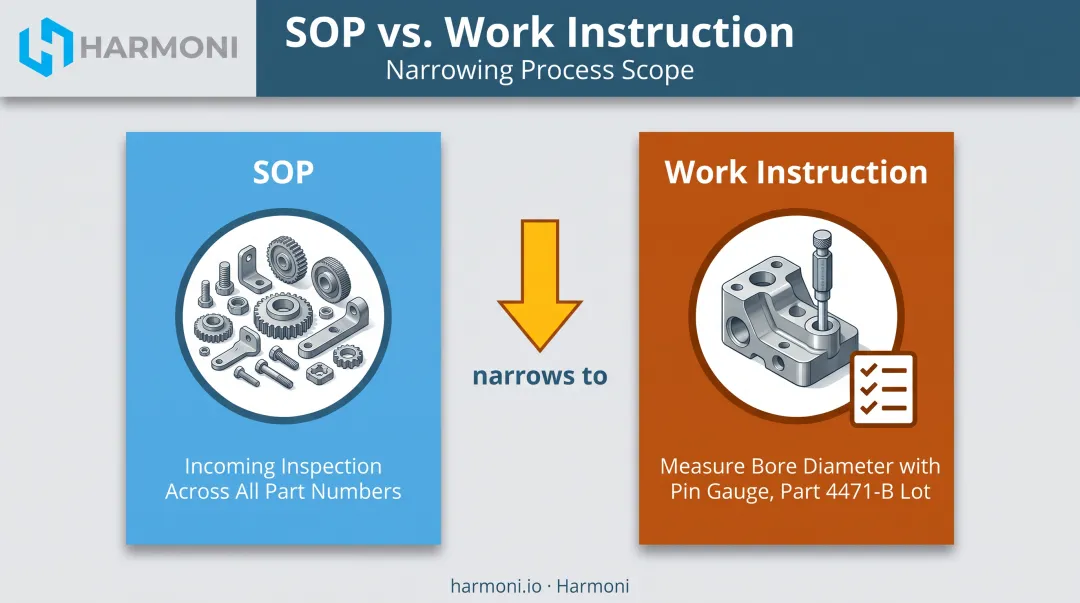

Work Instruction vs. SOP: What's the Difference?
An SOP governs a whole process — say, incoming material inspection across every part number that arrives at the dock. A work instruction narrows that down to one task: "inspect incoming raw material lot for Part 4471-B" or "measure bore diameter on Part X using the Class ZZ pin gauge."
Rule of thumb: if the procedure doesn't give someone enough detail to complete the task independently and get the same result every time, you need a work instruction.
Example: A first-piece inspection instruction for a CNC-machined housing wouldn't just say "check dimensions." It would specify the CMM program to run, the exact measurement points tied to the drawing's GD&T callouts, and the acceptance tolerance for each feature. No interpretation required.
Key Elements of an Effective QC Work Instruction
A work instruction is only useful if it removes ambiguity. Here's what belongs in every one:
- Title, purpose, and scope. State the part number, process step, or workstation it applies to so an operator never wonders whether they're holding the right document.
- Step-by-step sequencing. Use short, single-action steps. "Measure bore diameter at three points" is one step; "Clean part, place in fixture, and measure" is three steps disguised as one.
- Required tools and methods. Name the exact instrument (caliper, CMM, go/no-go gauge, torque wrench) and note calibration requirements where relevant.
- Acceptance criteria. Pull pass/fail limits straight from the engineering drawing, GD&T callouts, or customer spec. Never paraphrase a tolerance; reference it directly.
- Visual aids. Photos, diagrams, and annotated drawings beat written notes alone. Modern Machine Shop notes that photographing CNC setups gives operators added clarity for repeat jobs, especially when a less experienced operator picks up someone else's setup.
- Documentation and escalation path. Specify how results get recorded (checklist, digital form, SPC log) and how a deviation escalates into a non-conformance or CAPA. Without that path, the instruction only says what to check, not what to do when it fails.

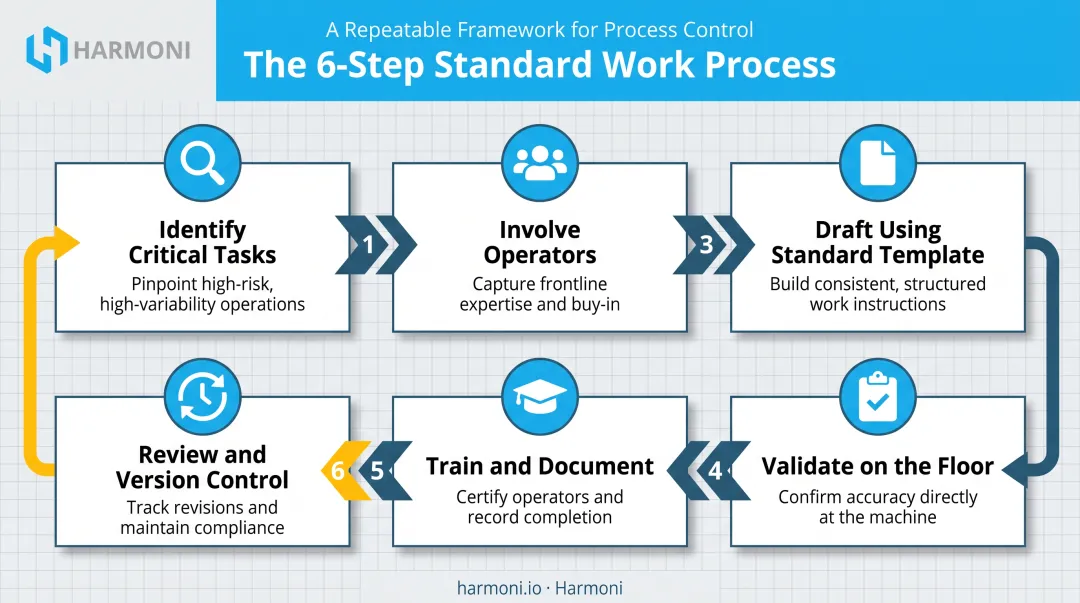

How to Develop & Implement Quality Control Work Instructions
Building a quality control work instruction isn't a one-and-done documentation task. Treat it as a living process:
- Identify critical tasks first. Prioritize high-risk or high-variability operations: first-article inspection, in-process gauge checks, and final inspection before shipment. Don't document every task at once.
- Involve the operators who do the work. Frontline staff know the real bottlenecks and ambiguities. Engineer-only drafts written off the floor usually miss real working conditions.
- Draft using a standard template. Include purpose, scope, tools, sequential steps, acceptance criteria, and revision-control fields. Same format every time so operators know where to look.
- Validate on the floor. Have a different operator run the draft exactly as written, with no coaching. Every hesitation or question marks a gap in the instruction.
- Train and document. Deliver role-specific training on the finalized version and log completion. That log is your audit evidence later.
- Review and version control. Set a recurring review cadence, and update immediately when tooling, tolerances, or engineering specs change. Track every revision—not only the current version.
Digital work instructions make training logs, controlled distribution, and revision history far easier to maintain at scale than paper or shared-drive files.
Benefits of Well-Written QC Work Instructions
Getting this right pays off in ways that show up directly in cost and audit performance. Rework and scrap aren't a rounding error: FMA's 2023 fabrication industry benchmarking survey found internal scrap and rework averaged 1.4% of sales among participating shops, up from 1.0% in prior years.
Well-written QC work instructions deliver:
- Less variation across shifts and operators, so fewer defects hit the next operation
- Faster onboarding—new or temporary operators can run a task correctly on day one
- Traceable audit evidence for ISO 9001, AS9100, and customer audits, including AS9100 clause 8.5.1.n proof that inspections ran as planned
Common Challenges & Mistakes to Avoid
A few patterns show up repeatedly in shops with weak work instruction programs:
- Generic steps that assume prior knowledge leave room for interpretation, which drives operator-to-operator variation.
- Paper packets trailing a CNC job turn into mixed revisions and handwritten notes, so accurate instructions get buried and newer staff are left guessing (Modern Machine Shop).
- Binders on a shelf with no link to production or machine data mean deviations surface only after the batch is finished, when scrap is already locked in.
Bringing QC Work Instructions to Life on the Shop Floor (Digital & Real-Time Execution)
Static PDFs and paper travelers share the same weakness: they don't know what's happening on the machine right now. Digital, workstation-level delivery closes that gap.
From Static Documents to Real-Time Delivery

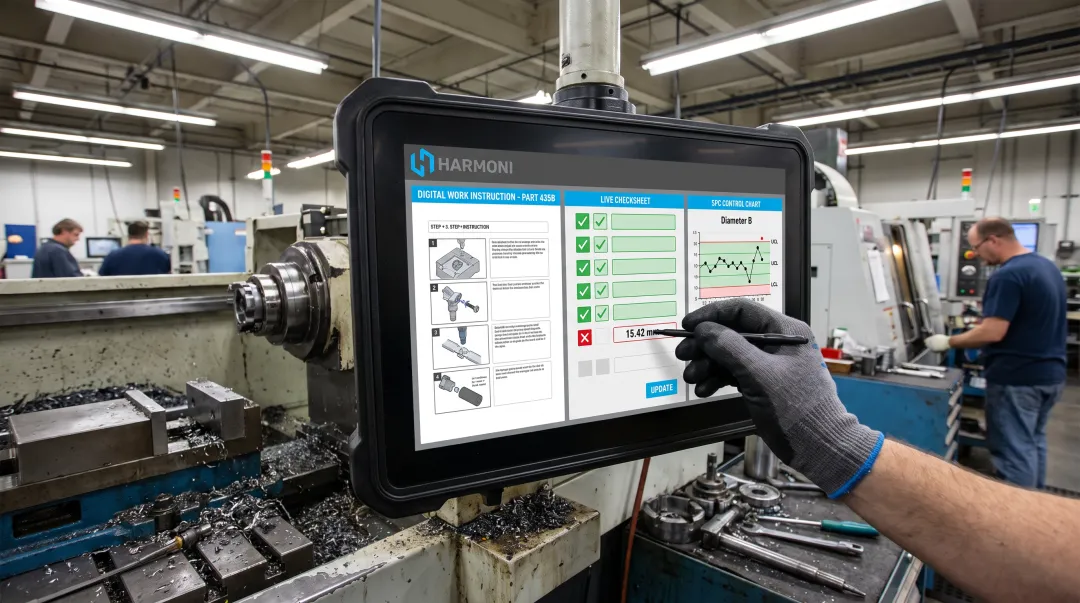

Harmoni uses long-range RFID to detect the operator and the active job the moment someone approaches a machine, with no badge swipe or manual lookup.
It cross-references that job against its linked database and surfaces the correct work instructions, engineering drawings, and setup sheets for that specific part and revision, right on the terminal at the machine.
That matters because revision errors are one of the most common paper-based failure points. Harmoni's own documentation puts it plainly: "Gone are the days of printing work instructions for the wrong part or an old revision."
Catching Problems Mid-Batch, Not After
Because work instructions are tied into real-time machine and ERP data, quality issues can surface while production is still running:
- Operators enter checksheet measurements digitally at the machine, tracked against pre-set target values and tolerances
- SPC-style control charts show measurements trending toward a tolerance boundary before a part crosses it
- Exception alerts notify managers; color-coded floor lights (green to yellow to red) flag degrading conditions
At Machine Specialties, Inc. (MSI), a precision aerospace and defense manufacturer, this shift to real-time job data, work instructions, and digital checksheets at every machine helped the company nearly eliminate errors in part counts on complex, high-risk parts and drop paper travelers entirely.
The Job Costing Side Effect
Operator time, machine cycle time, and scrap data are captured automatically at the point of work instead of logged manually later. Job costing accuracy and labor visibility improve as a byproduct of better quality execution, not a separate initiative.
For defense and aerospace customers, that same machine-side workflow supports compliance. Machine-level multi-factor authentication and a Government Cloud option add the access control and audit trail ITAR and CMMC environments require.
Frequently Asked Questions
What are the key steps and procedures for quality control work instructions?
Identify critical tasks with the operators who do the work, then draft from a standard template. Validate on the floor with a different operator, train and document completion, and keep version control through regular reviews.
What is the difference between a quality control work instruction and an SOP?
An SOP governs a broader departmental process, while a work instruction gives step-by-step detail for one specific, repeatable task within that process. You typically need both.
Who is responsible for writing QC work instructions?
Quality or QA leads usually own the document, but the operators who perform the task (and engineering, when specs are involved) should help draft it.
How detailed should a work instruction be?
Detailed enough that someone unfamiliar with the task can complete it correctly without asking for clarification. If a step requires prior knowledge to interpret, it needs to be broken down further.
How often should QC work instructions be reviewed or updated?
Set a scheduled periodic review cadence, and update immediately whenever tooling, engineering specs, or tolerances change. Don't wait for the next scheduled review if a spec changes today.
Can quality control work instructions be digital instead of paper-based?
Yes. Digital delivery gives you automatic revision control and links instructions to live production data, so operators always see the current version for the job and machine in front of them.
