Introduction
In a CNC shop or aerospace fabrication environment, a single deviation — the wrong program loaded, a missed setup step, a tool offset that drifts without anyone noticing — can mean scrapped parts, missed delivery dates, and expensive rework. The margin for error in precision manufacturing is essentially zero.
Yet many shops still rely on experienced operators carrying institutional knowledge in their heads, and on post-production inspection to catch what went wrong — by which point the damage is done.
Manufacturing process control is the discipline that changes that equation. Instead of reacting to defects, it creates the conditions where deviations are detected and corrected while production is still running — extending beyond machines to the operator and workflow layers that sensors and PLCs have historically missed.
Key Takeaways:
- Process control monitors and actively adjusts production variables to keep output within specification — it is not the same as quality inspection
- Closed-loop feedback systems are the backbone of consistent manufacturing quality
- Human operator execution is often the least controlled variable on the shop floor
- Modern orchestration platforms extend process control to workflows, operators, and ERP data
- Effective process control reduces reliance on after-the-fact inspection
What Is Manufacturing Process Control?
Manufacturing process control is the systematic method of monitoring, measuring, and adjusting production processes to keep output within defined specifications. In practice, this spans two distinct domains: automated machine-level control (sensors, PLCs, control loops) and operator-level execution control (work instructions, deviation response, setup verification).
The distinction between process monitoring and process control matters. Monitoring observes what's happening. Control actively intervenes to correct it. NIST describes this as feedback or feed-forward loops that automatically maintain key conditions around a desired setpoint — not passive observation alone.
When automated correction isn't possible, engineers use Out-of-Control Action Plans (OCAPs): documented response protocols that tell operators exactly what to do when a measurement falls outside acceptable limits. OCAPs are the human equivalent of a control loop.
What Process Control Actually Manages
Every manufacturing process involves four categories of variables:
- Inputs — raw materials, energy, tooling
- Controlled variables — spindle speed, temperature, feed rate, pressure
- Uncontrolled variables — ambient conditions, shift changeovers, operator variation
- Outputs — part quality, yield, waste, cycle time
Process control's job is to manage the relationship between all four — and the tools for doing that vary significantly by manufacturing type. Continuous environments (chemical processing, food production) rely on different control architectures than discrete ones (CNC machining, aerospace fabrication). That difference shapes which systems manufacturers actually deploy.

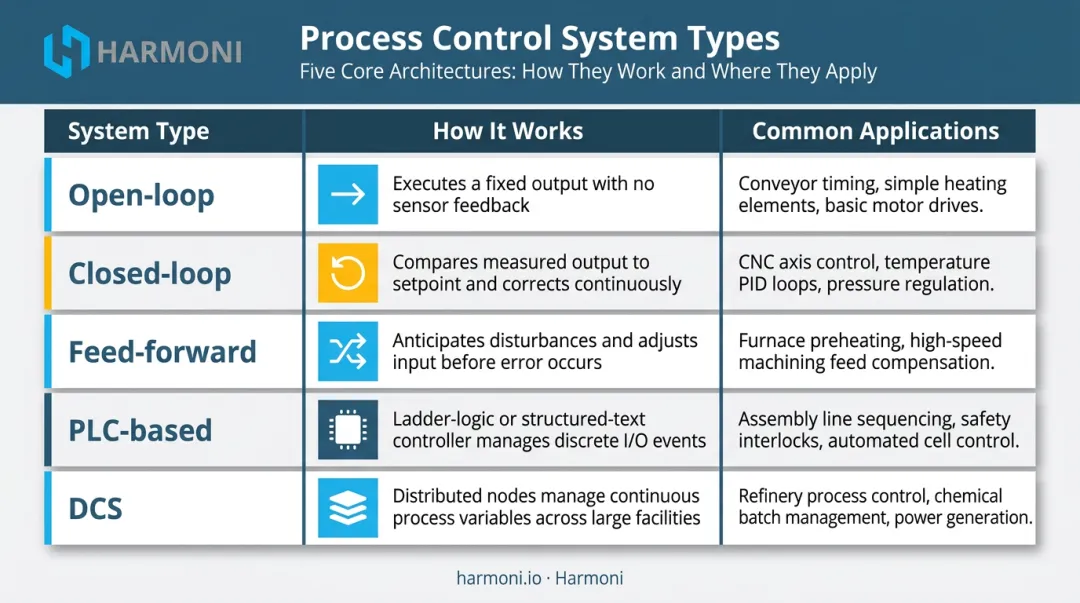

Types of Process Control Systems
| System Type | How It Works | Common Application |
|---|---|---|
| Open-loop | Pre-defined actions, no feedback | Simple conveyors, basic automated cycles |
| Closed-loop | Sensor data continuously adjusts output to match setpoint | CNC feed rate compensation, temperature control |
| Feed-forward | Anticipates disturbances before they affect output | Proactive adjustment for known process inputs |
| PLC-based | Hardware controller managing local process via feedback | Discrete manufacturing cells, assembly lines |
| DCS | Supervisory architecture overseeing multiple integrated subsystems | Complex multi-line production environments |
Most mid-size discrete manufacturers encounter these through their PLCs, machine controllers, and ERP integrations.
Key Components of a Manufacturing Process Control System
A process control system has five functional layers. Each one plays a specific role in the closed-loop cycle.
Sensors and Measurement Devices
Sensors continuously detect process variables — temperature, pressure, flow, cycle time, dimensional tolerance — and convert them into data signals the control system can act on. Without accurate measurement, there is no control. This is where the loop starts.
Controllers
Controllers receive sensor data, compare it to configured setpoints, and determine corrective action. In most discrete manufacturing cells, PLCs handle this at the hardware level, managing:
- Sequencing logic and timing
- PID control loops for continuous variables
- Cross-machine interlocks and safety conditions
Software-based controllers in modern manufacturing platforms extend this capability beyond individual machines to cross-system workflows.
Actuators
Actuators physically execute the controller's decisions — adjusting valve positions, conveyor speeds, machine settings, or tool offsets to bring the process back within specification. Where sensors are the input, actuators are the output — the physical mechanism that closes the loop.
Feedback Mechanisms
The closed-loop cycle — measure, compare, correct, re-measure — creates continuous process stability. Each correction feeds new data back into the system, enabling ongoing adjustment rather than one-time calibration. In practice, this means a machine doesn't just correct once — it keeps correcting, with each pass tightening the process toward the target.
The Operator Layer
Beyond automated components, human operators remain a critical part of process control in discrete manufacturing. They interpret alerts, execute setup procedures, make judgment calls on ambiguous situations, and respond to out-of-control events.
The operator execution layer is often the least controlled variable in a CNC shop. Traditional control systems were designed to govern machine behavior — not human behavior — which leaves a measurable gap in most process control architectures.

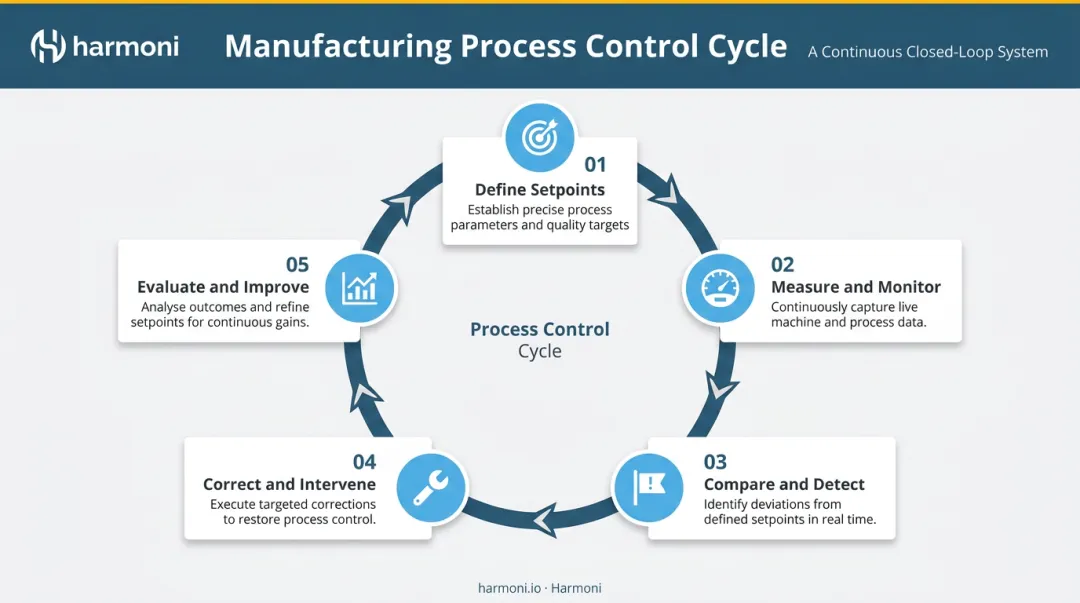

The 5 Steps of the Manufacturing Process Control Cycle
Process control isn't a one-time setup. It runs as a continuous closed-loop cycle with five repeating steps.
Step 1 — Define setpoints and specifications. Effective control starts with clarity about what "in control" means: acceptable tolerances, target values for controlled variables, and quality thresholds the process must consistently meet.
Step 2 — Measure and monitor. Sensors and machines collect data continuously, comparing actual performance against defined setpoints in real time — not at end-of-shift or during final inspection.
Step 3 — Compare and detect deviations. The control system identifies when a measurement falls outside acceptable limits and triggers an alert or out-of-control signal. NIST notes that an out-of-control signal rejects the assumption that current observations come from the same population used to establish control limits — meaning something in the process has changed.
Step 4 — Correct and intervene. Two paths exist: automated adjustment via control algorithms, or human-directed intervention guided by a documented OCAP. Having a predefined response plan for each deviation type is critical — improvised responses under pressure produce scrap, rework, and decisions that can't be repeated or audited.
Step 5 — Evaluate and improve. After correction, engineers analyze deviation trends to identify root causes, refine setpoints, and update control strategies. The cycle doesn't end with correction — each deviation becomes documented evidence for tighter tolerances, updated OCAPs, and a control strategy that gets harder to break over time.
Run consistently, this five-step cycle transforms process control from a reactive firefighting exercise into a structured system for maintaining — and progressively improving — production quality.

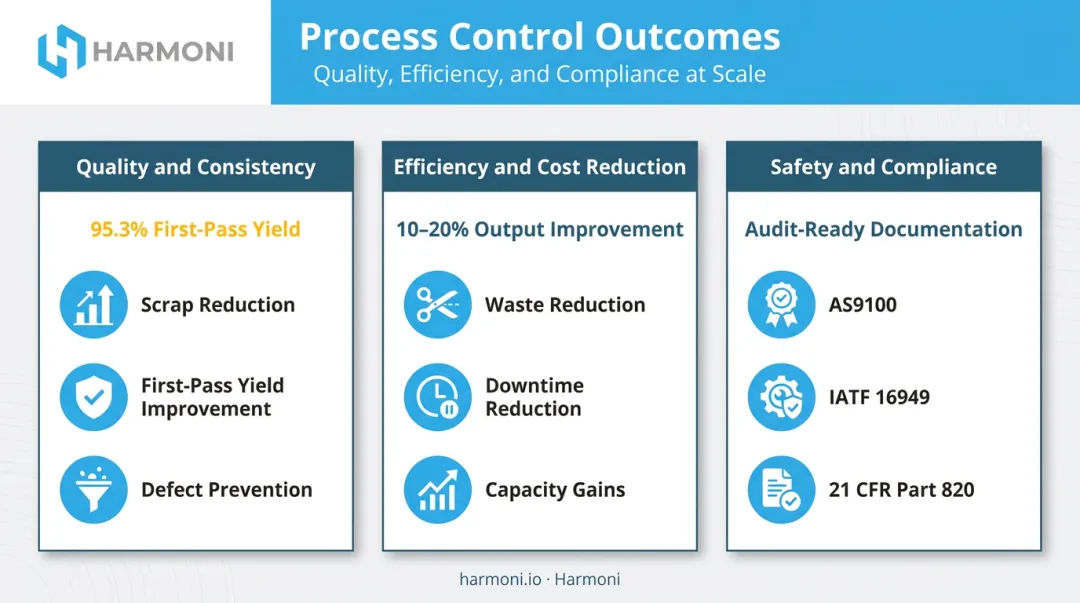

Key Benefits of Process Control in Manufacturing
Quality and Consistency
Tight process control minimizes variation between parts and batches, which reduces scrap, rework, and defect rates. IndustryWeek's analysis of Best Plants winners — 41% of which were discrete manufacturers — found median scrap and rework costs of just 0.6% of sales and median first-pass yield of 95.3%. These are elite-plant benchmarks, not industry averages — they show what disciplined process control makes possible.
In aerospace, defense, and medical device manufacturing, tolerances leave no room for variation. A single undocumented deviation can have safety or compliance consequences, as the NTSB's investigation of the Alaska Airlines 737-9 door plug separation demonstrated — four door-plug bolts were not reinstalled during manufacturing, with no removal record, and the plug separated in flight.
Efficiency and Cost Reduction
Process control keeps production running within optimal parameters, which reduces:
- Material waste from out-of-spec parts
- Energy consumption from inefficient process conditions
- Unplanned downtime from equipment pushed past limits
- Operator time spent on reactive problem-solving
Deloitte's 2025 Smart Manufacturing survey of 600 executives reports 10–20% production output improvement and 10–15% unlocked capacity from smart-manufacturing initiatives — though these gains reflect broader smart-manufacturing programs, not process control alone.
Safety and Compliance
Well-controlled processes reduce out-of-spec products reaching customers and lower the probability of equipment failures that create safety risks. In regulated sectors, this translates directly to compliance requirements:
- AS9100 requires documented evidence that planned production and inspection steps were completed
- IATF 16949 mandates control plans tied to APQP
- 21 CFR Part 820 requires documented production and process control procedures for medical devices
Process Control Across Manufacturing Sectors
CNC Machining and Precision Manufacturing
In CNC environments, process control monitors spindle speed, feed rate, tool wear, and dimensional output. One practical example: in-machine probing creates a closed-loop sequence where the machine cuts a part, measures it, adjusts tool offsets, and cuts again — continuously correcting without operator intervention.
Statistical Process Control (SPC) adds a statistical layer on top, using control charts to separate normal process variation from special-cause deviations that require intervention. ASQ defines SPC as using statistical techniques to distinguish common-cause variation intrinsic to the process from special-cause variation arising externally — a critical distinction for CNC shops managing tight tolerances across high-mix production.
Aerospace and Defense
Aerospace process control centers on traceability and repeatability across complex, multi-step workflows. A deviation at step three of a 20-step process can invalidate every step that follows. This is why AS9100 requires documented evidence of completed production and inspection steps, and Nadcap subjects special processes like welding and heat treatment to independent auditing. The Boeing 737-9 door plug incident is a stark reminder that physical execution and documentation must operate as one system.
Automotive Assembly
Automotive process control relies heavily on closed-loop feedback systems managing automated assembly operations. Vision systems can detect incorrect part installation or out-of-spec welds in real time. AIAG's CQI-15 Welding System Assessment establishes common requirements for organizations performing metallic welding, providing a framework for standardized control and auditing across the supply chain.
How Modern Technology Is Transforming Manufacturing Process Control
Traditional process control focused on machine-level variables — temperature, pressure, speed — governed by PLCs and sensors. That remains essential. But modern discrete manufacturing introduces a harder challenge: coordinating the human, machine, and workflow layers simultaneously in real time.
A PLC can correct a drifting spindle speed in milliseconds. No traditional control system detects when an operator pulls the wrong revision of a work instruction, sequences jobs out of priority order, or skips a setup verification step. Those deviations don't trigger sensor alarms. They surface later — as scrap, as missed deadlines, as compliance findings.
Factory Orchestration as an Extended Control Layer
Modern factory orchestration platforms extend process control beyond the machine by integrating ERP data, machine signals, and operator activity into a unified view. This enables manufacturers to detect and correct deviations in human execution — wrong job sequencing, missed setup steps, unplanned stoppages — with the same discipline that sensors apply to machine behavior.

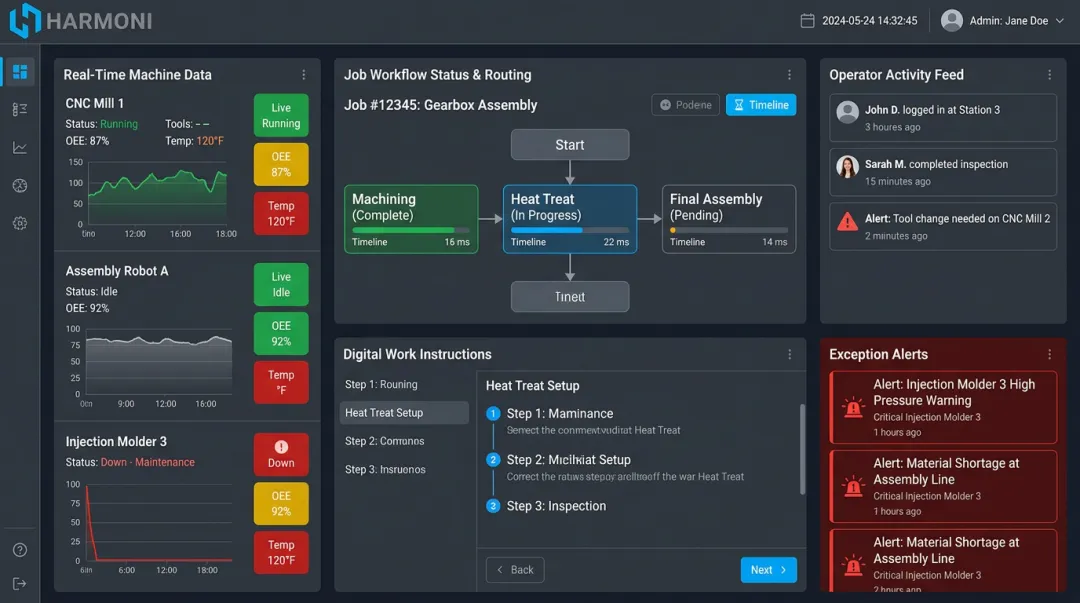

Harmoni's factory orchestration platform operates in exactly this space. Sitting between ERP systems, machines, and operators, Harmoni combines real-time machine data with operator activity and workflow status to surface deviations as they happen — not after production is complete.
Practically, this means:
- Digital work instructions delivered automatically to the machine side, tied to the specific job and revision so operators always work from the correct, current document
- Automated CNC program loading that eliminates manual program selection, a common source of scrap in high-mix environments
- Real-time checksheet data that monitors each production cycle as it runs, flagging trending deviations before they produce scrap
- Exception alerts pushed to managers when machine efficiency or job progress deviates from expected parameters
- Multi-factor authentication at the machine level, ensuring only authorized operators access controlled programs and drawings (required for ITAR, CMMC, and AS9100 compliance)
This brings process control discipline to the parts of manufacturing that PLCs and sensors have historically missed: operator-level execution, job routing, and cross-system coordination. Harmoni integrates natively with major ERPs including Epicor, Infor, Infor Visual, and ECI JobBoss, as well as CNC controls from Mazak, Haas, Fanuc, Heidenhain, Siemens, and DMG MORI. Deployment takes weeks and requires no equipment replacement.
Frequently Asked Questions
What is meant by process control?
Process control refers to the systematic monitoring and adjustment of manufacturing process variables to keep output within predefined specifications. It covers both automated control systems (sensors, PLCs, feedback loops) and human intervention protocols like OCAPs — and is distinct from after-the-fact inspection.
What is the role of process control?
Process control maintains consistency, quality, and efficiency in production by detecting deviations from target conditions and correcting them before they produce defective parts, material waste, or downtime. Prevention is the core function — not detection after something has already gone wrong.
What are the 5 steps in the controlling process?
The five steps are: (1) define setpoints and specifications, (2) monitor and measure in real time, (3) detect and flag deviations, (4) intervene and correct via automation or OCAP, and (5) evaluate data to improve the process. Together, they form a continuous closed-loop cycle.
What are examples of process controls?
Common examples include a PLC automatically adjusting CNC feed rates when tool wear is detected, a thermostat regulating furnace temperature during heat treatment, and an operator following a documented OCAP when a part measures out of tolerance.
What is the difference between process control and quality control?
Process control is proactive — it adjusts processes in real time to prevent defects from occurring. Quality control is typically reactive, inspecting finished products after production to identify defects before shipment. Strong process control reduces how much downstream quality inspection a manufacturer actually needs.
