Quality Control Inspection Reports

Introduction

Catching a defect during production costs a fraction of what it costs to find it after the lot ships. NIST's 2024 manufacturing economy report estimates quality defects cost U.S. discrete manufacturers between $32 billion and $58.6 billion annually — losses that accumulate when inspection data arrives too late to change anything.

The QC inspection report sits at the center of that gap. It's the formal record that determines whether a lot ships, gets reworked, or gets rejected — and whether your organization can defend that decision in a customer audit six months later.

This article covers:

  • What a quality control inspection report is and how it differs from general quality documentation
  • The six report types manufacturers use at each production stage
  • The eight components every defensible report must include
  • A step-by-step process for writing a defensible report
  • The four mistakes that consistently fail audits

What Is a Quality Control Inspection Report?

A quality control inspection report is a structured document that records whether a product, batch, or process meets predefined specifications at a specific inspection stage. What distinguishes it from general quality documentation is its specificity: it is tied to a particular lot, inspection type, and named inspector at a defined point in time.

QC vs. QA — and Where Reports Fit

According to ASQ, QA provides confidence that requirements will be fulfilled, while QC uses operational techniques to fulfill them. In practice:

  • QA prevents defects through process controls, audits, and system-level oversight — focused on the process before output exists
  • QC detects defects by examining outputs against predetermined criteria — focused on what was actually produced

QC inspection reports document the results of reactive inspection activities. They feed data back into the QA system for trend analysis, corrective action, and process improvement.

Three Core Functions of a QC Inspection Report

Function What It Means
Audit traceability Creates a retrievable record linking a specific lot to its inspection results, inspector, and disposition
Lot disposition authority Formally authorizes Accept, Reject, or Hold decisions with documented basis
Corrective action input Provides the factual data needed to investigate root causes and prevent recurrence

All three functions must be present for a report to hold weight during audits or corrective action reviews. Physical inspection thoroughness means little if the documentation doesn't support traceability, disposition, and follow-through.

Types of Quality Control Inspection Reports

The Four Primary Report Types by Production Stage

  • Incoming Quality Control (IQC):** Triggered when raw materials or supplier components arrive at the receiving dock. Verifies that incoming material meets purchase order specifications before it enters production.
  • In-Process Quality Control (IPQC):** Conducted at defined intervals during production. Catches dimensional drift, setup errors, or process deviations while parts are still correctable.
  • Outgoing/Final Quality Control (OQC):** Pre-shipment verification confirming the finished lot meets all customer and drawing requirements before it leaves the facility.
  • First Article Inspection (FAI):** Validates a new or changed manufacturing process against design requirements. AS9102C (2023) is the current aerospace standard governing FAI documentation. FAI is triggered by events such as a two-year production lapse, a tooling change, or a new supplier.

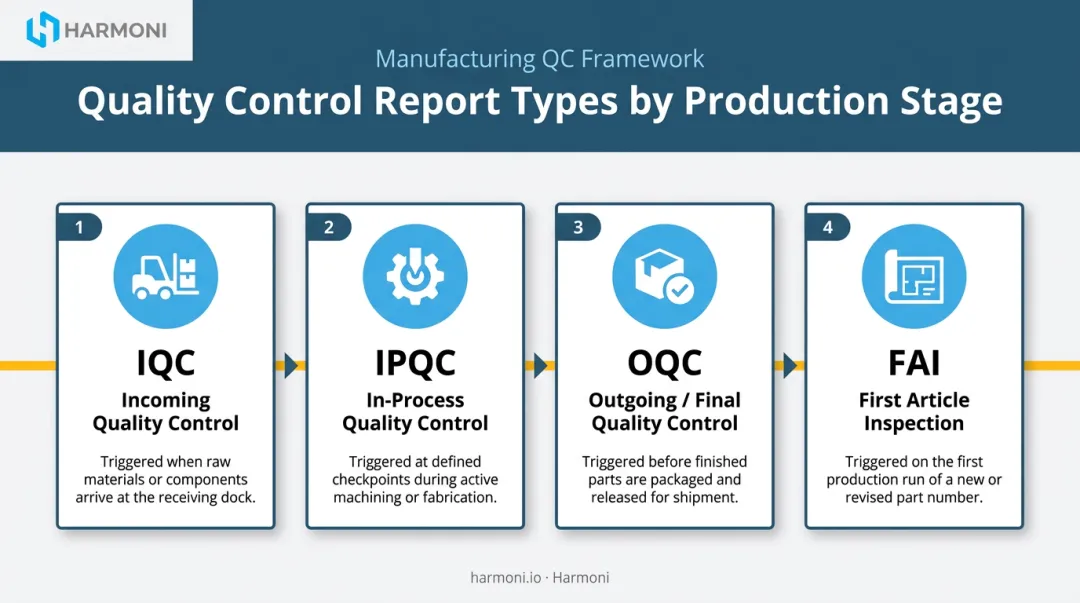

Four-stage quality control inspection report types by production stage

Two Additional Critical Report Types

  • Non-Conformance Report (NCR):** Documents lots or individual characteristics that fail to meet specifications. Opens a formal corrective action loop and cross-references back to the originating inspection report.
  • Supplier Quality Audit Report:** Evaluates a vendor's consistency against established quality agreements. Required under IATF 16949 clause 8.4.2.4.1 for automotive supply chains.

Compliance Context by Industry Standard

Each report type feeds into a broader compliance obligation. Manufacturers in regulated industries face defined documentation requirements tied directly to these inspection records:

  • ISO 9001 — Requires documented information on inspection results (clause 8.6) and control of nonconforming outputs (clause 8.7), but does not specify universal retention periods
  • IATF 16949 — Corrective action (clause 10.2.1) is the top major nonconformity found in automotive surveillance audits at 8.9%; control plan compliance (clause 8.5.1.1) ranks second at 6.1%
  • AS9100 Rev D — Requires production process verification and complete FAI documentation under clause 8.5.1.3; record retention expectations are governed by customer-specific requirements (Ford requires 2 years for inspection data; GM mandates program life for layout results)

Key Components of an Effective QC Inspection Report

An inspection report missing any of the following eight components is incomplete and will fail a customer audit, regardless of how thorough the underlying inspection was.

1. Identification Header

The header block must include:

  • Unique report number (for NCR cross-reference)
  • Part number and drawing revision — matched to active document control, not the PO revision
  • Lot or serial number traceable to production records
  • Inspection type (IQC / IPQC / OQC / FAI)
  • Inspector name or ID, date, and shift
  • Customer/PO reference where applicable

Mismatched or missing header data is the most common single reason inspection reports fail audits.

2. Inspection Scope and Sampling Plan

This section must document:

  • Lot quantity and sample size
  • AQL level and inspection level (e.g., ANSI/ASQ Z1.4 Level II, AQL 1.0 major)
  • Drawing revision used as the inspection standard
  • Gauge or equipment IDs with calibration certificate numbers and expiry dates

Without this, the statistical basis for the lot disposition decision is undocumented — an auditor reviewing results without a sampling plan has no way to evaluate whether the sample size was adequate.

3. Inspection Results — Actual Values, Not Pass/Fail

Every characteristic from the inspection plan must show:

  • Nominal value
  • Tolerance (upper and lower)
  • Actual measured value recorded as a number

Pass/fail-only entries are audit liabilities — they provide no data for trend analysis, SPC, or corrective action root cause investigation. Any out-of-tolerance finding must be highlighted and cross-referenced to an NCR number.

4. Visual Evidence and Photo Documentation

Photos are required for:

  • Any non-conforming finding
  • Any characteristic where visual condition is being documented
  • Packaging damage observed during receiving inspections (photograph before opening)
  • Before-and-after photos when rework is performed

Each photo must be labeled with the characteristic number, lot number, and date.

5. Corrective and Preventive Actions

For any non-conformance, this section must include:

  • Factual description of the non-conformance
  • Severity classification (critical / major / minor)
  • Corrective action to address the immediate defect
  • Preventive action to stop recurrence
  • Responsible party and deadline for each action

Actions without named owners and deadlines are unenforceable — and a report without enforceable actions cannot close a non-conformance.

6. Disposition and Authorized Sign-Off

Three disposition outcomes are possible:

Disposition Condition
Accept Findings meet AQL acceptance criteria
Reject Findings exceed AQL limits; lot quarantined
Hold for Engineering Review Findings require deviation or concession evaluation

Each decision must be signed and dated by an authorized quality representative. QA countersignature is required for critical lots, customer-designated parts, and first articles. Conditional acceptance requires an engineering deviation or customer concession on file before the report closes.

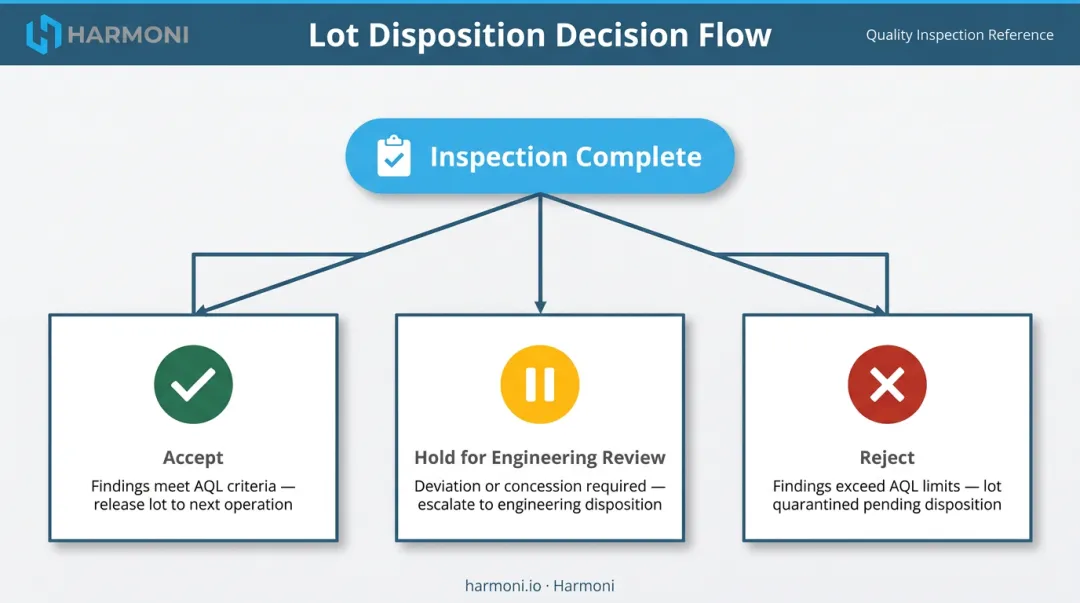

QC inspection report lot disposition decision three outcomes accept reject hold

How to Write a QC Inspection Report: Step-by-Step

Step 1 — Before the Inspection Begins

  1. Confirm the active drawing revision against document control (not the PO)
  2. Select the correct checklist for the inspection type (IQC / IPQC / OQC / FAI)
  3. Verify all gauges are in calibration with current certificates
  4. Assign a report number
  5. Document lot quantity and sample size before touching any product

Step 2 — During the Inspection

  • Record actual measured values for every characteristic in real time at the point of measurement — not from memory at shift end
  • Attach photos to specific line items as findings are made
  • Flag out-of-tolerance results immediately, without waiting for the full inspection to complete

Step 3 — Documenting Non-Conformances

For every characteristic outside tolerance:

  • Write a factual, specific description — location, dimension, and severity
  • Assign a defect classification: critical, major, or minor
  • Open a cross-referenced NCR if the finding meets the threshold for rejection or corrective action

Step 4 — Making the Lot Disposition Decision

  • Compare total findings against the AQL acceptance criteria from the sampling plan
  • Select Accept, Reject, or Hold — and document the basis for the decision explicitly
  • Conditional acceptance requires an engineering deviation or customer concession already on file

Step 5 — Closing and Distributing the Report

  • Obtain authorized signatures
  • File in the QMS indexed by part number, lot number, and date
  • Distribute to production, engineering, and the customer where required

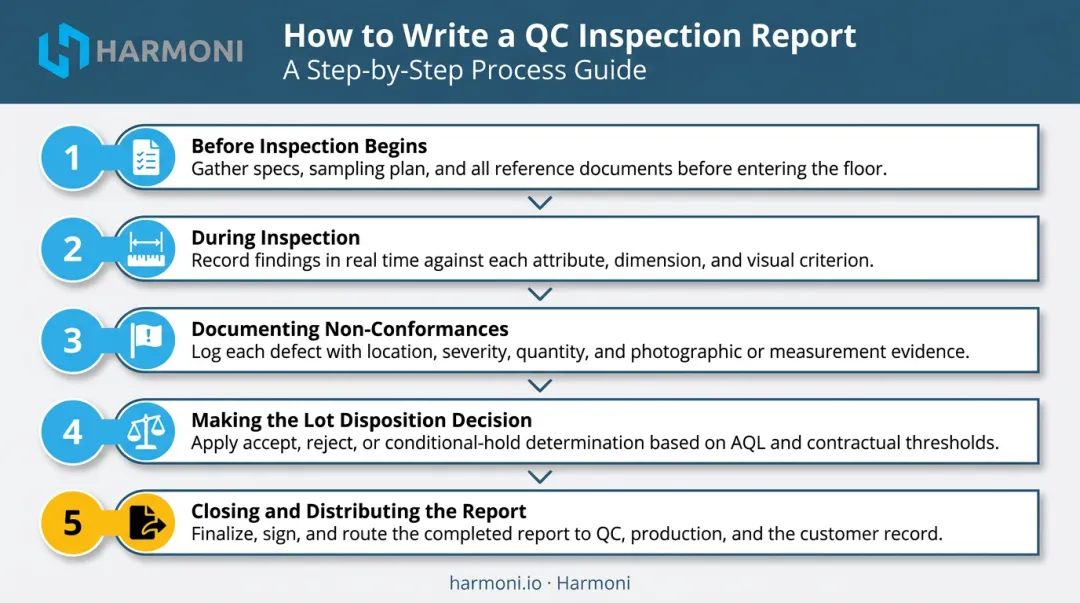

Five-step QC inspection report writing process from pre-inspection to distribution

Every closed report should be immediately retrievable for audit or corrective action — by lot number, part number, or date.

Common QC Inspection Report Mistakes That Fail Audits

Mistake 1 — Recording Pass/Fail Instead of Actual Measured Values

This is the most common audit failure. A customer or certification auditor cannot verify compliance or investigate a field failure if the report only states "pass." Correct practice: record numeric actuals for every characteristic, every time.

Mistake 2 — Mismatched Drawing Revisions

Using an outdated drawing revision during inspection invalidates the entire report — the acceptance criteria applied may not match current engineering requirements. This is especially damaging in aerospace and automotive programs where ECN traceability is audited systematically.

Mistake 3 — Missing or Undocumented Sampling Plan

A report that records results without stating lot size, sample size, and AQL level gives auditors no basis to evaluate statistical adequacy. This gap frequently surfaces as a major finding in ISO 9001 and IATF 16949 surveillance audits.

Mistake 4 — Reports Compiled After the Fact

Completing or reconstructing reports hours or days after inspection creates serious risk:

  • Measurement values may be misremembered
  • Photos may be mislabeled or pulled from different lots
  • Timestamps may not align with production records

In regulated industries, this constitutes a documentation integrity failure. Manufacturers relying on paper-based or end-of-shift reporting cannot catch deviations while they're still correctable. By the time the report is compiled, the non-conforming parts have already moved downstream.

Modernizing QC Inspection Reporting on the Shop Floor

Paper-based QC reporting has a fundamental structural problem: the data arrives after the moment when it could have prevented anything. Reports compiled at shift end record what happened. Nothing in them stops it from happening again tomorrow.

The limitations are predictable:

  • Data recorded late, from memory, with transcription errors
  • Reports take hours to compile and distribute
  • Non-conforming parts move downstream before the report flags them
  • Trends are invisible until they become escapes

A modernized workflow looks different: inspection data captured at the point of measurement, automatically logged against the active job and lot, photos attached in real time, and disposition decisions made while the lot is still at the workcenter.

Harmoni's factory orchestration platform addresses this by coordinating operator activity, machine data, and engineering requirements in real time at each workcenter. Digital quality checksheets are completed on the machine-side operator command center, tied to the active job and part revision through RFID-based job identification. The platform flags out-of-tolerance conditions while production is still running — not buried in a report the next morning.

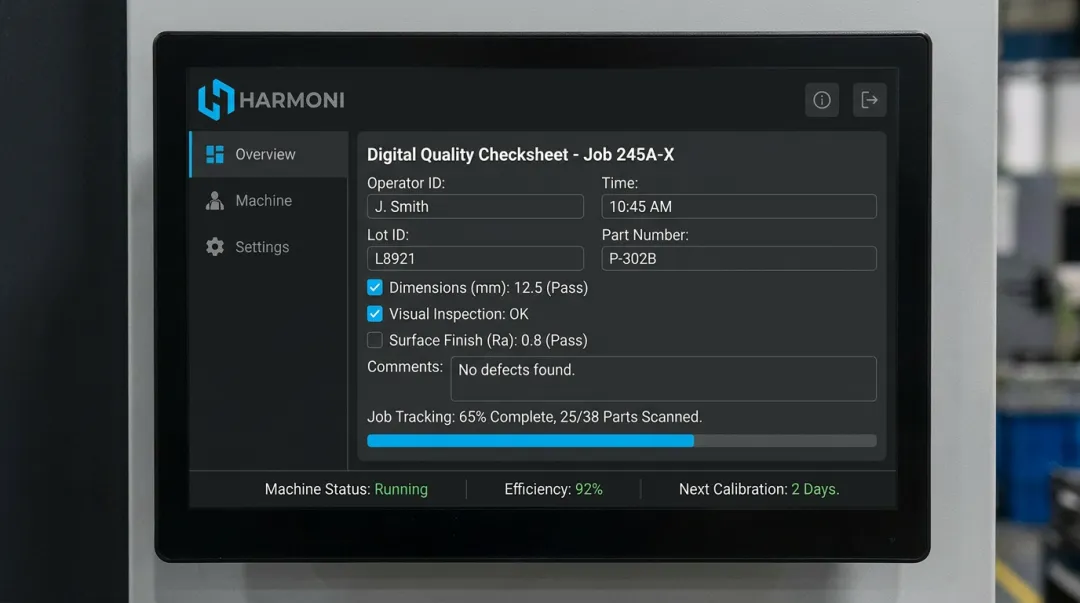

Harmoni factory orchestration platform operator command center digital quality checksheet

Connecting Quality Data to Shop Floor Observability

That real-time capture unlocks a broader operational benefit: connecting inspection data to shop floor observability. When quality data flows into a centralized system alongside machine OEE, spindle performance, and operator activity, patterns emerge that standalone PDFs can never reveal.

A specific machine consistently producing out-of-tolerance results on a particular shift. A correlation between a performance dip and an inspection escape. This kind of visibility only exists when the data lives in the same system at the same time — not scattered across reports filed independently.

For manufacturers operating under AS9100, IATF 16949, or CMMC/ITAR requirements, Harmoni also offers a Government Cloud deployment option with RFID-based multi-factor authentication — ensuring that access to quality records and inspection data is controlled, auditable, and aligned with the access management requirements those standards demand.

Frequently Asked Questions

What is inspection quality control?

Inspection quality control is the systematic process of examining products or materials at defined production stages against predetermined specifications — using documented checklists and measurement data — to determine whether a lot meets acceptance criteria before it advances or ships. By design, it's reactive: it evaluates what was produced, not how to prevent future defects.

What are the 5 ways QC inspectors use checklists?

Checklists serve five primary functions on the shop floor:

  • Ensure all inspection criteria are evaluated consistently, regardless of which inspector runs the check
  • Document the exact acceptance criteria applied to each lot
  • Guide the sampling procedure step by step
  • Structure the QC report format for consistent recordkeeping
  • Create a repeatable framework for trend analysis across multiple inspections of the same part or process

What is the difference between a QC report and a QA report?

QC reports are reactive documents — they record inspection results on a specific lot to determine conformance at a point in time. QA reports are proactive tools that evaluate process effectiveness and compliance over time to prevent defects from occurring in the first place. QC feeds data into QA; QA uses that data to change how processes run.

What are the different types of quality control inspection reports?

The six main types, each triggered at a different production stage:

  • Incoming (IQC) — evaluates supplier-delivered materials before they enter production
  • In-Process (IPQC) — checks conformance mid-production at key operation steps
  • Outgoing/Final (OQC) — gates product release before it ships to the customer
  • First Article Inspection (FAI) — validates the first production part against engineering specs
  • Non-Conformance Report (NCR) — documents any failure to meet acceptance criteria
  • Supplier Quality Audit Report — assesses supplier-level process compliance over time

What happens after a failed QC inspection report?

A failed inspection triggers a formal Reject or Hold disposition, and the quality team opens an NCR documenting the non-conformance and its severity. Responsible owners receive corrective action assignments with deadlines. After implementation, the team re-inspects the lot before accepting or releasing it to the next production stage.
