The gap isn't always obvious. Parts are moving, operators are busy, and production looks active from the floor. But without accurate measurement, you can't separate real productivity from the appearance of it. You can't tell whether a machine is underperforming because of maintenance gaps, operator behavior, setup inefficiency, or something else entirely.
This article covers how to define machine productivity precisely, which metrics actually capture it, what's causing most shops to leave output on the table, and the optimization strategies that create lasting improvement.
Key Takeaways
- Machine productivity measures output relative to inputs — and improving it starts with measuring it accurately
- OEE breaks performance into Availability, Performance, and Quality, pinpointing the root cause of underperformance, not just confirming it exists
- Manual data collection creates recall errors, delays, and gaps that prevent real-time response
- Productivity losses come from both machine-side and operator-side causes — you need visibility into both
- Sustainable improvement depends on unified, real-time data across machines and operators
What Is Machine Productivity?
NIST defines productivity as the ratio of output or value added to inputs such as labor or equipment. At the machine level, that translates to a straightforward rate:
Machine Productivity = Total Good Parts Produced ÷ Total Machine Hours
A higher ratio means the machine converts resources into saleable output more effectively. A lower ratio means time, energy, and labor are being consumed without proportional return.
Productivity vs. Efficiency: Understanding the Difference
Productivity and efficiency are related but not interchangeable. Productivity asks: how much did we produce relative to what we put in? Efficiency asks: how well did we use those resources — how much waste, scrap, and cost crept in?
A machine can be productive yet inefficient. Running 200 parts per shift sounds strong until you learn 30 of them were scrapped. Track both dimensions — favoring one at the expense of the other produces misleading performance data.
The Machine Productivity Formula in Practice
Consider two machines running the same part:
- Machine A produces 180 good parts in an 8-hour shift = 22.5 parts/hour
- Machine B produces 210 total parts in the same shift, but 40 fail inspection = 170 good parts = 21.25 parts/hour
Machine B looks faster on total output. But on good parts per hour — the metric that actually correlates with revenue — Machine A leads. The formula makes that difference visible and actionable.
That said, raw part counts only tell the full story in high-volume, single-part environments. For high-mix shops — where a simple turned part and a complex aerospace component represent very different amounts of work — use standard hours earned or product-family segmentation, and define your numerator and denominator explicitly before comparing unlike operations.
How to Measure Machine Productivity
Parts per hour gives you a result. It doesn't tell you why the result is what it is. To identify root causes — and prioritize where to focus improvement — you need a framework that disaggregates performance into its components.
Using OEE as a Comprehensive Productivity Metric

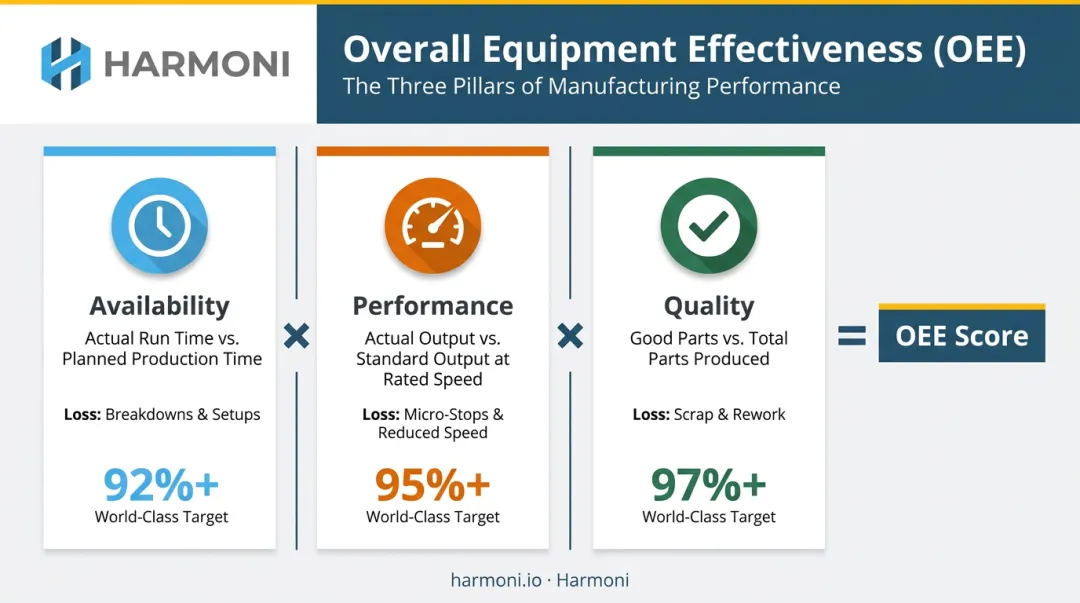

Overall Equipment Effectiveness (OEE), as defined by the Lean Enterprise Institute, is the standard framework for this purpose. It multiplies three components, each diagnosing a different category of loss:
| Component | What It Measures | Loss Category |
|---|---|---|
| Availability | Actual run time ÷ Planned production time | Breakdowns, setups, adjustments |
| Performance | Actual output ÷ Standard output at rated speed | Micro-stops, reduced speed |
| Quality | Good parts ÷ Total parts started | Scrap, rework, defects |
OEE = Availability × Performance × Quality
A worked example from IndustryWeek illustrates how quickly losses compound: 460 scheduled minutes minus 60 minutes of downtime yields 87% Availability. Running 400 parts against an 800-part standard yields 50% Performance. Producing 392 good parts out of 400 yields 98% Quality. Multiply them: 87% × 50% × 98% = 42.6% OEE — despite respectable quality numbers.
OEE exposes all three dimensions at once — a strong quality rate cannot compensate for a speed problem, and solid runtime numbers won't mask setup losses. Applied per spindle, per machine, per shift, or across a workcenter, it points improvement efforts exactly where they belong.
Benchmarking: What Does Good Machine Productivity Look Like?
SME's Manufacturing Engineering publication cites 85% OEE or higher as a target for complex systems, with element targets of 92%+ Availability, 95%+ Performance, and 97%+ Quality. IndustryWeek's counterpoint is worth taking seriously: no universal threshold applies to every machine or production context.
The practical takeaway: use 85% as directional context, not a pass/fail grade. Establish your own machine-specific baseline first, then manage each OEE factor and its underlying loss reasons over time.
Common Causes of Low Machine Productivity
Most shops aren't dealing with one big problem. They're dealing with several medium-sized ones that are individually tolerable but collectively damaging.

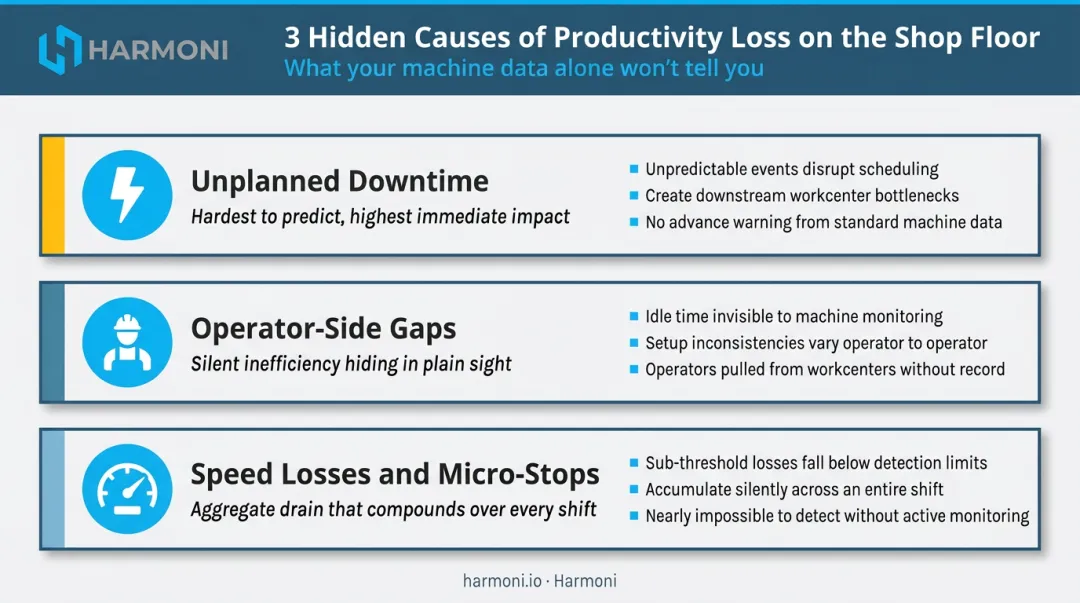

Three loss categories account for the majority of preventable output gaps:
- Unplanned downtime — breakdowns that disrupt scheduling and compound through the shift
- Operator-side idle time — setup gaps and pulled operators that don't appear in machine data
- Speed losses and micro-stops — sub-threshold losses that accumulate silently across a shift
Unplanned downtime is the most disruptive loss category because it's unpredictable. A breakdown doesn't just consume repair time — it throws off scheduling, creates downstream bottlenecks, and forces reactive decisions that compound through the shift. NIST estimated $18.1 billion in annual downtime losses across U.S. manufacturing, and individual shops absorb that impact in missed deliveries and scrambled schedules.
Operator-side gaps are often invisible in machine data alone. Inconsistent setup procedures, unclear work instructions, and operators pulled away from workcenters all create idle time — but that idle time doesn't register as "machine downtime." The machine sits ready, and no one is tracking why it isn't cutting.
Speed losses and micro-stops are the quiet killers. A machine running at 80% of its rated speed looks operational. Brief stops that restart automatically don't trigger alarms. But accumulated across a shift, these sub-threshold losses can represent more lost output than a single documented breakdown — and they're nearly impossible to detect without real-time monitoring.
Proven Strategies to Optimize Machine Productivity
Shift from Reactive to Predictive Maintenance
Scheduled preventive maintenance is better than waiting for failures — but it still leaves gaps. Condition-based strategies, informed by actual run cycles, temperature signals, and performance trends, reduce both unplanned failures and unnecessary maintenance activity. The goal is catching degradation before it becomes a breakdown, rather than following a calendar that has no connection to actual wear patterns.
Prioritize this approach on your constraint equipment first. Applying predictive maintenance across every machine equally won't increase system throughput if the machine you're protecting isn't limiting output.
Standardize Operator Processes and Work Instructions
Cycle time variance across shifts is rarely random. It usually traces back to how differently operators interpret setup procedures, reference documentation, or job sequencing decisions. That variability has a direct cost in both output rate and quality escapes.
Standardizing SOPs and delivering them digitally at the machine — tied to the specific job and part revision — removes the guesswork. Operators get the right instructions at the right time without leaving the workcenter to find them. Platforms like Harmoni deliver work instructions, setup sheets, and drawings automatically when an operator is identified at a machine via RFID, keeping the process consistent across all shifts without relying on paper binders or shared terminals.
Reduce Changeover and Setup Time
Setup time is non-cutting time. Every minute spent preparing for a run is a minute the machine isn't producing parts. The Lean Enterprise Institute's SMED methodology — Single-Minute Exchange of Die — targets changeover times under 10 minutes by separating internal setup tasks (requiring the machine to be stopped) from external ones (preparable while the machine runs).
Automating CNC program loading is one of the most direct applications of this principle. When the correct program, settings, and offsets load automatically upon job identification — rather than requiring operators to manually locate and enter them — setup time shrinks and the risk of loading the wrong program disappears.
Address Bottlenecks Systematically

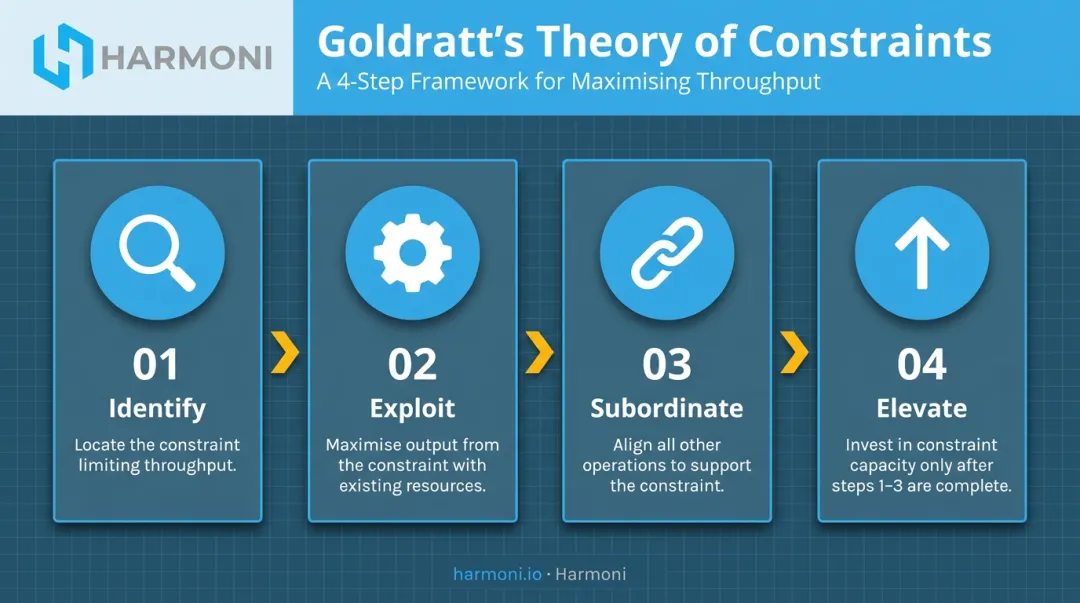

Eliyahu Goldratt's Theory of Constraints provides a clear improvement sequence:
- Identify the constraint — the machine or process limiting throughput for the entire line
- Exploit it — maximize output from that constraint with existing resources
- Subordinate everything else — align upstream and downstream operations to support the constraint
- Elevate it only after the first three steps are complete
Optimizing a non-constraint machine — making it faster, reducing its downtime — does nothing for system output if it feeds work to a bottleneck that can't absorb it. Focus improvement resources where they actually move the number that matters.
Uncover Hidden Capacity
Most shops overestimate their utilization. Published case studies from Modern Machine Shop and Production Machining have documented shops where utilization rose from 18% to 30% after implementing monitoring — not because anything changed physically, but because accurate measurement revealed how much available time was genuinely idle.
Track actual run time against available time honestly. Non-cutting states worth measuring include:
- Waiting for an operator to arrive at the machine
- Waiting for the correct CNC program to be located and loaded
- Waiting for setup completion between jobs
- Unplanned stops with no fault code recorded
That gap between perceived and actual utilization is recoverable capacity — and it doesn't require capital investment to close.
Why Manual Tracking Holds Back Productivity Gains
End-of-shift logs have a structural problem: they depend on recall. An operator recording machine states from memory at the end of an 8-hour shift cannot accurately reconstruct the sequence of micro-stops, job transitions, and brief idle periods that define real production behavior. NIST's maintenance research describes manual work-order data as prone to being incomplete, inconsistent, and insufficiently structured for analytics — making it unreliable as a basis for decisions.
The consequence isn't just inaccuracy. It's latency. By the time a manager reviews yesterday's shift report, the conditions that created the problem have changed — and the opportunity to intervene has already passed.
Manual tracking also breaks the connection between machine data and operator data. Without it, a manager looking at downtime can't distinguish between a machine fault, an absent operator, an unqueued job, or unclear setup instructions. Each cause has a different fix — and without the data to tell them apart, every response is a guess.
That uncertainty compounds over shifts.
Locking machine data in legacy controls or paper logs converts what should be a corrective action into a post-mortem — and post-mortems don't recover lost output.
How a Factory Orchestration Platform Transforms Machine Productivity
Machine monitoring tools capture what machines are doing. That's useful — but incomplete. The WessDel case illustrates the gap directly: the San Jose aerospace and defense manufacturer already had a machine monitoring system installed, yet productivity problems persisted. Operators were entering time data twice — once in Epicor, once in the monitoring system — creating more inefficiency rather than less. The machine data existed, but without operational context, it couldn't explain the losses.

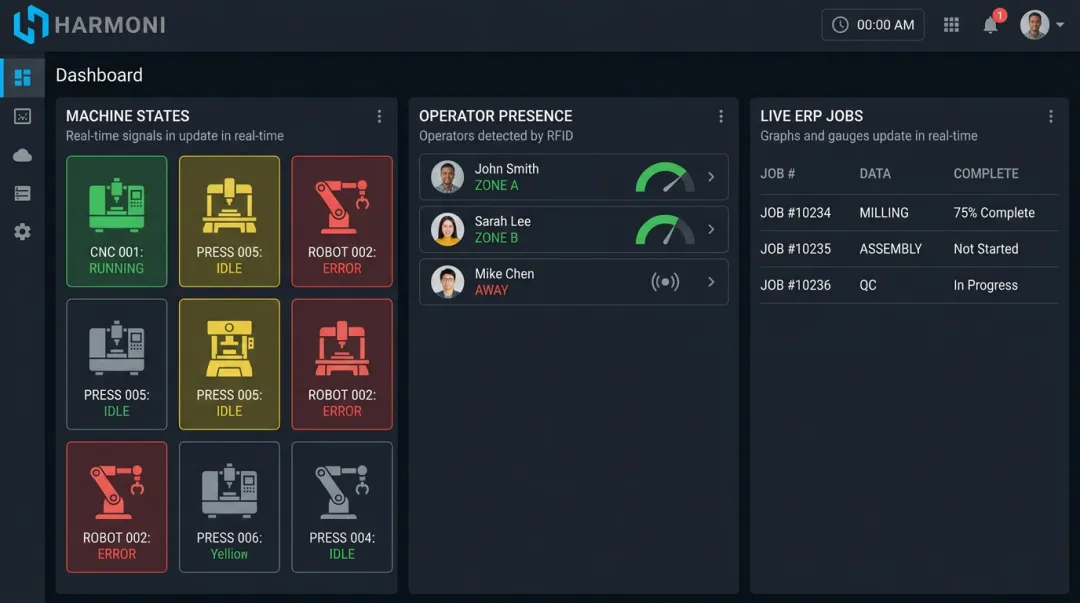

A factory orchestration platform addresses this differently. Rather than monitoring machines in isolation, it sits between ERP systems, machines, and operators to coordinate all three simultaneously. Harmoni, for example, pulls ERP job data, machine state signals, and RFID-based operator activity into a single view — so a manager can see not just that a machine is idle, but whether an operator is present, which job should be running, and whether the correct program has loaded.
That unified view changes what's actionable. Each idle scenario has a different cause — and a different fix:
- Idle machine, operator present: points to a sequencing or instruction problem
- Idle machine, no operator detected: points to a scheduling or labor allocation issue
- Active machine fault: distinct from both, requiring maintenance response
Pure machine monitoring surfaces the stoppage. It can't tell you which of these three situations you're actually in.
The operational impact compounds across shifts. When non-productive tasks are automated — program loading triggered by RFID, work instructions delivered at the machine, quality checksheets completed digitally — operators spend more time cutting and less time searching, walking, or waiting.
The data benefit extends beyond the shop floor. When accurate job costing flows back into ERP in real time instead of being rebuilt from estimates after the fact, scheduling and quoting decisions improve downstream.
The difference between correcting a problem mid-shift and finding it in the next morning's report is the difference between a recoverable loss and a missed delivery. Real-time orchestration closes that gap.
Frequently Asked Questions
What is machine productivity?
Machine productivity is the ratio of good parts or finished goods produced to the inputs consumed — primarily machine time, labor, and materials. It measures how effectively a machine converts available resources into saleable output. A higher ratio indicates better conversion; a lower ratio signals waste somewhere in the input-to-output chain.
How do you improve machine productivity?
The main levers include:
- Reducing unplanned downtime
- Standardizing operator setup and run procedures
- Improving actual machine utilization
- Using real-time data to catch losses during production, not after the shift ends
Addressing bottleneck machines first ensures local improvements translate into system-level throughput gains.
What is the difference between machine productivity and efficiency?
Productivity measures how much output is generated relative to inputs. Efficiency measures how well those inputs are used — specifically, how much waste, scrap, and cost-per-unit creep in. A machine can produce high volumes (productive) while also generating unacceptable scrap (inefficient), which is why both need independent measurement.
What is OEE and how does it relate to machine productivity?
OEE (Overall Equipment Effectiveness) multiplies Availability, Performance, and Quality into a single composite score. It gives a fuller picture of machine productivity than parts-per-hour alone because it captures downtime, speed losses, and quality losses together — making it easier to identify which factor is most limiting output.
What causes low machine productivity in manufacturing?
The most common causes include unplanned equipment failures, machines running below rated speed, high scrap or rework rates, excessive changeover time, and operator idle time from unclear instructions. Each is measurable with the right data and addressable with targeted interventions.
How does real-time data improve machine productivity?
Real-time data allows managers to detect deviations during production rather than discovering them in a post-shift report. That window matters: a micro-stop that repeats 40 times in a shift is invisible in an end-of-day log but obvious on a live dashboard.
