Introduction
A check sheet does one thing well: it captures structured data at the exact moment and location an event occurs. Done right, that captured data becomes the foundation for every root cause analysis, process audit, and corrective action that follows.
The practical problem is that many teams treat check sheets as an afterthought. Forms get designed on the fly, categories stay undefined, and collected data sits in a binder rather than feeding any meaningful analysis. A poorly executed check sheet wastes the time of everyone who fills it out.
This guide covers how to design and use check sheets correctly in real manufacturing environments — which type to choose, how to build a form that actually works in the field, and how to connect collected data to decisions.
Key Takeaways
- Check sheets collect quantitative data (defect counts, measurements, location patterns); they are not task verification tools
- Choose the right type — defect tally, location, cause, process distribution, or inspection — based on the specific question you need to answer
- Define all categories before collection starts; ambiguous categories produce unusable data
- Pilot the form in the field before full deployment
- Analyze and act on collected data — otherwise the effort is wasted
When Should You Use a Check Sheet?
According to ASQ, a check sheet is appropriate when data can be observed and collected repeatedly by the same person or at the same location, and when the goal is to capture frequencies, patterns, defect locations, or possible defect causes from a production process.
Three conditions signal a good fit:
- The event or defect you're tracking happens frequently enough to form a pattern
- The same person or station will observe it consistently over a defined period
- You already know what categories to track before collection begins
Where check sheets are commonly misapplied:
- Confusion with checklists — a checklist confirms tasks were completed; a check sheet collects data for analysis. Different tools, different purposes.
- Starting collection before defining categories — records that can't be compared across shifts or operators are useless for trend analysis.
- Single-event audits — one observation produces too few data points to reveal a pattern.
When the conditions are right, check sheets earn their place in high-frequency, repetitive processes. The most common fits:
- Incoming material inspection at receiving
- In-process quality monitoring at key workstations
- End-of-line defect tallying across shifts

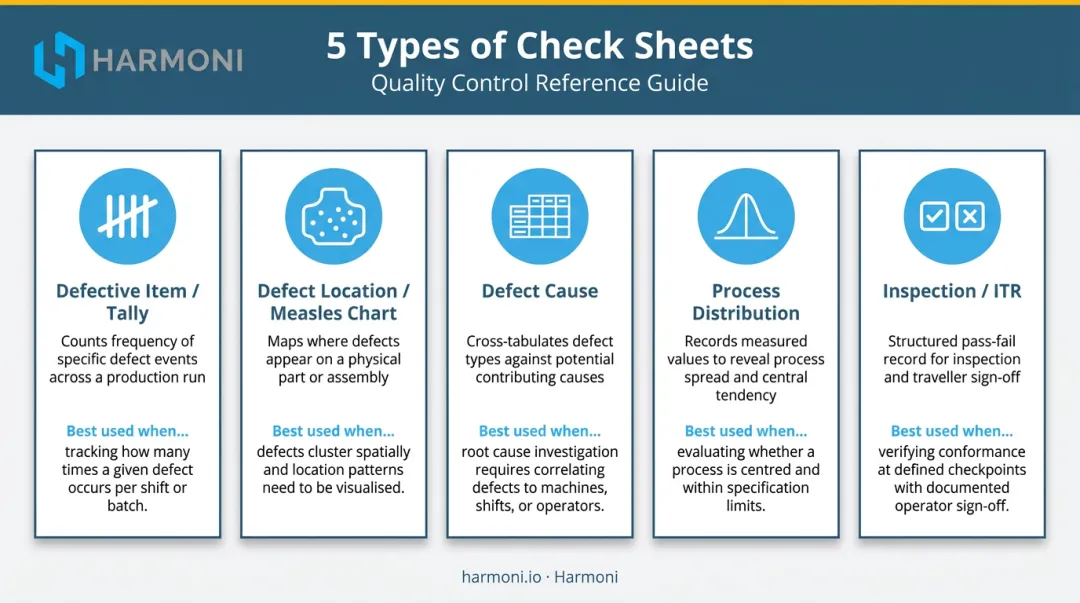

Types of Check Sheets Used in Quality Control
Selecting the right check sheet type before designing the form is the most consequential decision in this process. The type determines what you can learn from the data.
Defective Item (Tally) Check Sheet
The most common type. Rows list predefined defect categories; inspectors add a tally mark each time they observe a defect of that type.
Results feed directly into Pareto chart analysis, identifying which defect types account for the majority of occurrences and should be investigated first. This is the right starting point when you know defects exist but haven't prioritized which to tackle.
Defect Location Check Sheet (Measles Chart)
Uses a scaled drawing of the product. Inspectors mark the location of each defect directly on the diagram rather than recording a category name.
When defect marks cluster consistently in one area — say, coating failures on a single edge — the pattern points toward a fixture alignment issue, a tooling problem, or a setup variable. Quality Digest notes that in some circles this is called a measles chart, for obvious visual reasons.
Defect Cause Check Sheet
Uses a grid to record known defects against suspected causes — machine, operator, shift, material batch. This type is appropriate when you already know what defect is occurring but not why.
The data drives fishbone (Ishikawa) diagram analysis by showing which cause categories correlate with the highest defect counts.
Process Distribution Check Sheet
Collects measurements at regular intervals to build a frequency distribution in real time. Operators can see whether a process is centered within specification limits or drifting toward a boundary in real time — no waiting until after the run ends to build a histogram.
Use this type when early warning of process drift matters more than retrospective analysis.
Inspection Check Sheet
A structured pass/fail form used during formal quality inspections to verify that each item meets specified requirements. In construction and commissioning environments, similar records are often called Inspection Test Records (ITRs), though aerospace and defense contexts may use different naming conventions tied to AS9100 or CMMC documentation requirements.
How to Design and Use a Check Sheet
Check sheet effectiveness depends on defining the form correctly before data collection starts. Improvising categories mid-collection creates inconsistency that makes the data unusable.
ASQ's published procedure provides a reliable framework:
Step 1: Define the Purpose and Categories
State clearly what event, defect, or condition will be observed. Write an operational definition for each category so every collector applies the same criteria when marking a tally.
The form header should answer the Five Ws:
- Who is collecting
- What is being tracked
- Where collection occurs
- When (shift, date, time range)
- Why (the quality question being answered)
Ambiguous categories are the most common cause of check sheet failure. If two operators disagree on whether a given defect belongs in "surface scratch" versus "handling damage," the tally becomes meaningless.
Step 2: Design the Form Structure
Lay out the form so data can be recorded with a single tally mark or check. The form should require zero calculation or rewriting during collection.
Standard layout elements:
- Rows for each predefined category
- Columns for time periods or shifts
- Space for cumulative totals at the bottom
Common design errors to avoid:
- Too many categories — more than 8-10 categories becomes difficult to manage at the point of observation
- Missing header information — untraceable data can't be used for trend analysis
- No defined collection window — open-ended forms create partial datasets
Step 3: Pilot the Form in the Field
Before full deployment, run a short trial with the actual collectors. The pilot should answer three questions:
- Are the categories clear to the people using the form?
- Is the form fast enough to complete without interrupting work?
- Are there relevant events happening that the categories don't capture?
Problems found during a pilot take minutes to fix. Problems found after two weeks of data collection require starting over.
Step 4: Collect Data Consistently
Record each occurrence in real time at the point where it happens, not from memory at the end of a shift. Supervisors should reinforce consistent use across shifts. A dataset with gaps between shifts or inconsistent definitions across collectors can't support trend analysis or statistical conclusions.
Step 5: Tally Results and Feed Downstream Analysis

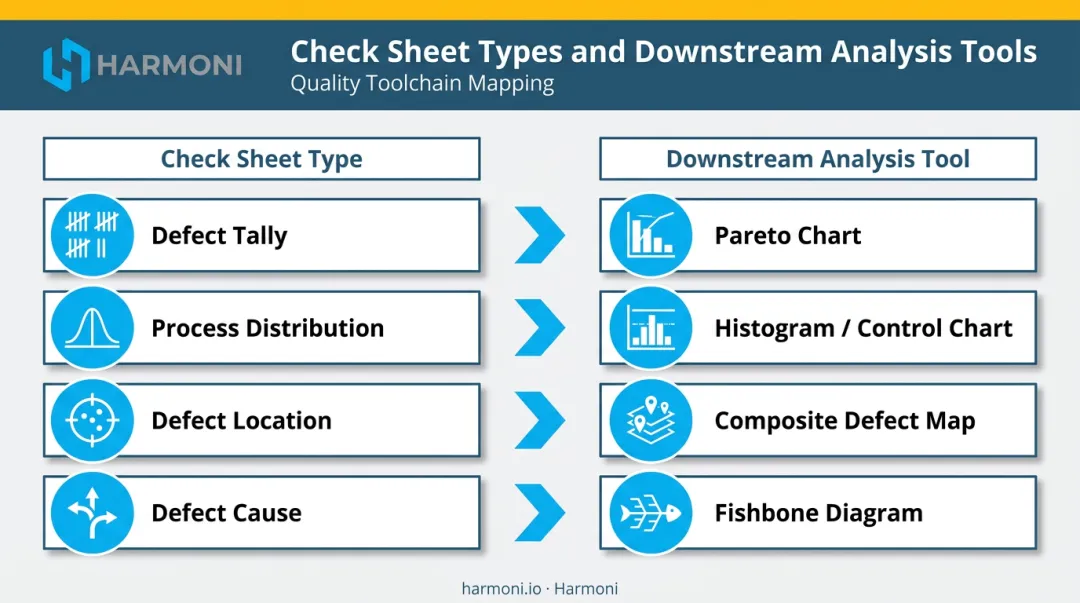

Once the collection period ends, sum totals by category and connect the data to the analysis tool appropriate for the check sheet type:
| Check Sheet Type | Downstream Analysis Tool |
|---|---|
| Defect tally | Pareto chart |
| Process distribution | Histogram / control chart |
| Defect location | Composite defect map |
| Defect cause | Fishbone diagram |
Collection without analysis defeats the purpose. The check sheet captures the data — corrective actions and decisions are what that data needs to drive.
Where Check Sheets Are Used in Manufacturing
Check sheets appear at several points in a typical manufacturing workflow:
- Incoming material inspection — tallying supplier defects by type to support supplier quality decisions
- In-process inspection at key workstations — monitoring defect rates as parts move through production
- End-of-line defect tallying — capturing final inspection results before parts ship
- Shift-based process monitoring — tracking process measurements against specification limits on high-volume lines
For manufacturers operating under compliance frameworks, documented inspection records aren't optional — they're required. The three most common standards each spell this out:
- ISO 13485:2016 — requires records that provide traceability, identify quantities manufactured and approved for distribution, and demonstrate conformity to acceptance criteria
- AS9100D — requires documented evidence that production and inspection operations were completed as planned
- IATF 16949 — mandates inspection and conformance records throughout the production process
None of these standards prescribe check sheets by name. They require documented evidence — and check sheets are among the most practical, auditor-ready tools for generating it at the point of production.
Best Practices for Using Check Sheets Effectively
Define a specific collection window and enforce it. A shift, a production batch, or a calendar day — pick one and stick to it. Partial datasets collected irregularly can't support trend analysis or statistical conclusions.
Assign form ownership. Designate a specific person responsible for each check sheet at each workstation. Shared, unassigned forms tend to be completed inconsistently or not at all.
Keep category counts manageable. Fewer, well-defined categories produce cleaner data than exhaustive lists that inspectors have to parse under production pressure.
Act on the data. A check sheet connected to a weekly quality review drives improvement. One that ends up in a filing cabinet drives nothing — and signals to operators that their effort doesn't matter.
Paper establishes discipline; digital accelerates response. Paper-based check sheets build the habit of structured, real-time data capture — but they create delays in surfacing problems. Correlating paper data across shifts can take days, by which point the process condition that caused the defect has already changed.

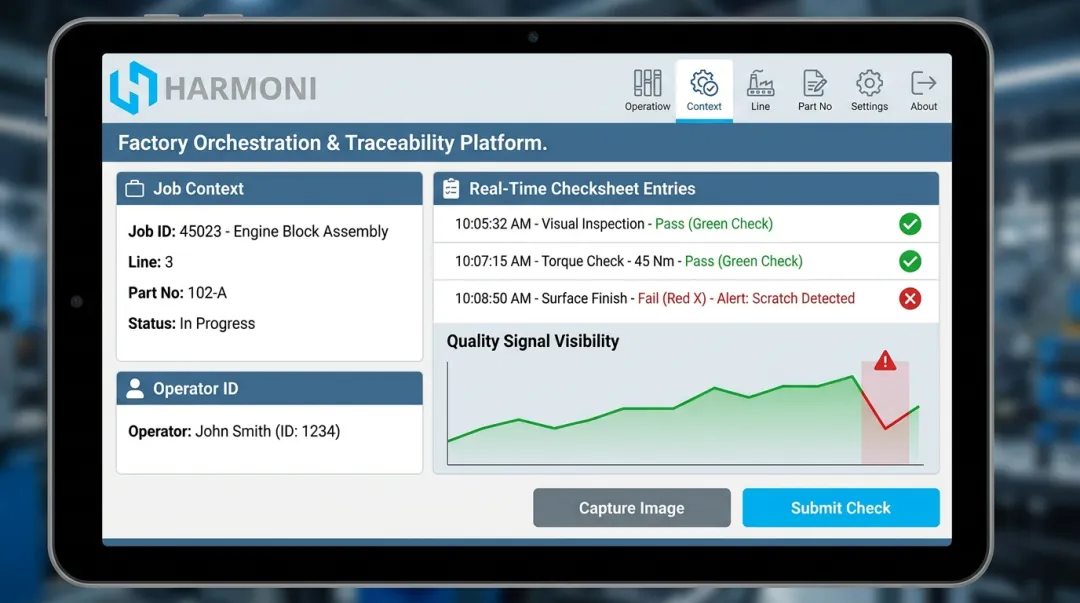

Harmoni's digital quality checksheet capability addresses this. As part of its factory orchestration platform, Harmoni captures checksheet entries at the machine side in real time, giving operators and managers visibility into out-of-tolerance production cycles as they happen rather than after the run ends.
Digital checksheets integrate with machine data, RFID operator identification, and job-level context — so when a quality signal appears, the production record already contains who was running the job, on which machine, and under which program revision. That level of traceability isn't possible with a paper tally sheet.
Frequently Asked Questions
What is the check sheet in 7 QC tools?
ASQ identifies the check sheet as one of the seven basic quality tools first described in Kaoru Ishikawa's Guide to Quality Control. The classic list includes the cause-and-effect diagram, check sheet, control chart, histogram, Pareto chart, scatter diagram, and stratification. Check sheet data can be converted directly into histograms and Pareto charts for further analysis.
What is the difference between a check sheet and a checklist?
A check sheet collects quantitative data — defect counts, measurements, frequency tallies — for subsequent analysis. A checklist confirms that tasks or steps were completed. Check sheets are analysis tools; checklists are task management and compliance tools. Confusing the two is common and leads to poorly designed forms that serve neither purpose well.
What are the most common types of check sheets used in manufacturing?
The five primary types are defective item (tally), defect location (measles chart), defect cause, process distribution, and inspection check sheets. Each answers a different quality question — what defects occur, where, why, how the process is distributed, or whether items passed inspection. Match the type to the question you're actually trying to answer.
How do you design an effective check sheet for defect tracking?
Four steps catch most design problems before they corrupt a dataset:
- Define defect categories in writing before collection begins
- Design for single-mark entry with no in-field calculation
- Include a complete header: who, what, where, when, and why
- Pilot the form in the field before full deployment
What should you do with check sheet data after collection?
Tally results by category and connect them to the appropriate analysis tool: Pareto charts for defect frequency, histograms or control charts for process distribution, and composite diagrams for location patterns. The point is to identify root causes and act on them — the check sheet is the starting point, not the conclusion.
